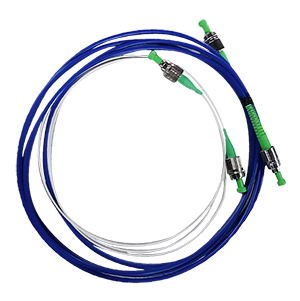

Connet selects high-precision FC-type fiber connectors and ceramic ferrules for making high-quality polarization-maintaining optical fiber patch cords. The operating wavelength range covers short wavelengths (350-900nm), near-infrared wavelengths (900-1650nm) and the mid-infrared wavelengths (1900-2100nm). The product line is rich to meet the needs of various applications.
The standard polarization-maintaining fiber patch cord adopts the PANDA-type polarization maintaining fiber and the slow axis alignment mode. According to the fiber types, Connet’s PM fiber patch cords are classified as PMJ-D series, PMJ-S series and PMJ-LMA series with the corresponding utilized fibers as Ge-doped PM fiber, pure silicon core PM fiber and the large mode area (LMA) PM fiber.
Connet adopts the most demanding processes to carefully craft each polarization-maintaining fiber patch cord to ensure the high return loss and high polarization extinction ratio, the concentricity deviation and the shaft angle deviation. In addition, the strict reliability tests guarantee that all the PM fiber patch cords meet the highest quality standards in the industry.
• Narrow-key FC-type connector
• High PER
• High return loss
• Low insertion loss
• PANDA-type PM fiber
• Laser to fiber coupling
• Optical fiber sensing
• Coherent communication
• PM fiber laser
• PM fiber amplifier
• LiDAR
• Pigtail fiber of optical components
• Other scientific research
Specifications
PMJ-D Series Short Wavelength PM Optical Fiber Patch Cord
|
Part No. |
Fiber Type |
Operating Wavelength Range (nm） |
Core Diameter （μm） |
Core Numerical Aperture（NA） |
Cut-off Wavelength（nm） |
Connector Type |
Insertion Loss |
PER（dB） |
|
PMJ-D-460 |
PM460-HP |
460-700 |
3.0 |
0.12 |
410 ± 40 |
FC/UPC FC/APC |
<1.0 |
>20 |
|
PMJ-D-630 |
PM630-HP |
620-850 |
3.5 |
0.12 |
570 ± 50 |
FC/UPC FC/APC |
<1.0 |
>20 |
|
PMJ-D-780 |
PM780-HP |
770-1100 |
4.5 |
0.12 |
710 ± 60 |
FC/UPC FC/APC |
<0.8 |
>20 |
PMJ-D Series Near-infrared PM Optical Fiber Patch Cord
|
Part No. |
Fiber Type |
Operating Wavelength Range (nm） |
Core Diameter （μm） |
Core Numerical Aperture（NA） |
Cut-off Wavelength（nm） |
Connector Type |
Insertion Loss |
PER（dB） |
|
PMJ-D-980 |
PM980-XP |
970-1550 |
5.5 |
0.12 |
920 ± 50 |
FC/UPC FC/APC |
<0.5 |
>23 |
|
PMJ-D-1300 |
PM1300-XP |
1270-1625 |
8.0 |
0.12 |
1210 ± 60 |
FC/UPC FC/APC |
<0.5 |
>23 |
|
PMJ-D-1550 |
PM1550-XP |
1440-1625 |
8.5 |
0.12 |
1380 ± 60 |
FC/UPC FC/APC |
<0.5 |
>25 |
PMJ-D Series Mid-infrared PM Optical Fiber Patch Cord
|
Part No. |
Fiber Type |
Operating Wavelength Range (nm） |
Core Diameter （μm） |
Core Numerical Aperture（NA） |
Cut-off Wavelength（nm） |
Connector Type |
Insertion Loss |
PER（dB） |
|
PMJ-D-1950 |
PM1950 |
1850-2200 |
7.0 |
0.20 |
1720 ± 80 |
FC/UPC, FC/APC |
<0.5 |
>25 |
PMJ-S Series Short Wavelength PM Optical Fiber Patch Cord
|
Part No. |
Fiber Type |
Operating Wavelength Range (nm） |
Core Diameter （μm） |
Core Numerical Aperture（NA） |
Cut-off Wavelength（nm） |
Connector Type |
Insertion Loss |
PER（dB） |
|
PMJ-S-405 |
PM-S405-XP |
400-680 |
3.0 |
0.12 |
380 ± 20 |
FC/UPC FC/APC |
<1.5 |
>20 |
|
PMJ-S-460 |
PM-S460-HP |
460-550 |
3.0 |
0.12 |
420 ± 30 |
FC/UPC FC/APC |
<1.2 |
>20 |
|
PMJ-S-630 |
PM-S630-HP |
630-780 |
3.5 |
0.12 |
580 ± 40 |
FC/UPC FC/APC |
<1.0 |
>20 |
PMJ-LMA Series LMA PM Optical Fiber Patch Cord
|
Part No. |
Fiber Type |
Operating Wavelength Range（nm） |
Inner Cladding Diameter （μm） |
Core Diameter （μm） |
Core Numerical Aperture（NA） |
Connector Type |
Insertion Loss |
PER（dB） |
|
PMJ-LMA-10/125 |
PLMA-GDF-10/125-M |
1060-1600 |
245±10 |
10±1.0 |
0.075±0.005 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-15/130 |
PLMA-GDF-15/130 |
1060-1600 |
245±10 |
15±1.5 |
0.080±0.005 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-20/130 |
PLMA-GDF-20/130 |
1060-1600 |
245±10 |
20±2.0 |
0.080±0.005 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-25/250 |
PLMA-GDF-25/250-M |
1060-1600 |
247 ± 5 |
25±1.5 |
0.065± 0.005 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-30/250 |
PLMA-GDF-30/250 |
1060-1600 |
250± 10 |
30±2.5 |
0.060± 0.010 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-20/400 |
PLMA-GDF-20/400-M |
1060-1600 |
395± 10 |
20±1.5 |
0.065± 0.005 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-25/400 |
PLMA-GDF-25/400-M |
1060-1600 |
395± 10 |
25±1.5 |
0.065± 0.005 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-25/300 |
PLMA-GDF-25/300 |
1530-1800 |
300 ± 8 |
25.± 2 |
0.090 |
FC/UPC FC/APC |
<0.5 |
>20 |
|
PMJ-LMA-25/400A |
PLMA-GDF-25/400-10FA |
1900-2100 |
400±15 |
25± 2 |
0.100± 0.010 |
FC/UPC FC/APC |
<0.5 |
>20 |
Connet has a full range of different optical fibers in stock to meet customers’ needs. If you have special requirements, please contact us. Connet also can provide customized service upon request. Thank you for your attention in Connet's high quality polarization-maintaining optical fiber patch cords.
