CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR

2021-05-25


CoLID-Mini 1550nm short pulse fiber laser for LiDAR of Connet is a fiber laser source delivering high peak power and high pulse energy output based on safe wavelength for the human eyes. The optimized design with special configuration can achieve high peak power and ns-level pulse width laser output. It is an ideal light source for LiDAR, telemetry and range finding.



CoLID-Mini 1550nm short pulse fiber laser for LiDAR has a compact structure in small size (70x70x25mm) with wide operating temperature range, low delay jitter and power consumption. The pulse output can be achieved by external TTL trigger signal, which is very suitable for system integration.



Advantages

• Light Weight

• Small Size

• Low Power Consumption

• Excellent Pulse Quality

• Low Delay Jitter

• High Repetition Rate



Features

• Eye-safe Wavelength: 1550nm
•  ns-level Short Pulse: 0.5~250ns (fixed or adjustable)
•  Ultra-low Power Consumption: <14W @1.5W output average power
•  Ultra-low Pulse Delay Jitter: <200ps
•  High Repetition Rate: 200kHz~3MHz
•  Wide Operating Temperature:-40℃~+65℃
•  Small Size: 70x70x25mm

•  Light Weight: <170g


Applications

•  LiDAR
•  Range Finding
•  Telemetry
•  3D Scanning
•  Other Scientific Research



Information of Device

Product Name

CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR

P/N

CoLID-Mini-1550-M



Testing Environment

Parameter

Requirement

Power Supply

12VDC, 2A

Operating Temperature

-40℃~65℃

Testing Temperature

25℃

Operating Humidity

<90%

Warm-up Time

<30mins



Test Data:

Parameter

Test Result

Center Wavelength

1549.97nm

Pulse Width (Adjustable)

1~10ns

Test Pulse Width

5ns

Test Repetition Rate (External TTL Trigger)

500kHz

Max Output Average Power @5ns/500KHz

1.51W

Monitor Average Power @5ns/500KHz

0.67uw

Optical Spectrum

Figure 1

Pulse Width

Figure 2

Repetition Rate

Figure 3

Delay between the Output Signal Light and the Monitor Light

Figure 4 (around 68ns)

Pulse Jitter

Figure 5 (182ps)

Output Fiber Type

SMF-28e

Output Fiber Length

0.3m

Output Connector

FC/APC

Beam Quality (M2)

1.08

Power Consumption @1.5W Output Average Power

13.4W

Dimension

70x70x25mm



Relationship between Pump Current Setting Value, Output Power and Power Consumption:

Pump Current Setting Value (mV)

Output Average Power (mW)

Power Consumption (W)

0

0

1.56 @12V*0.13A

1000

0.7

2.88 @12V*0.24A

2000

263

4.8 @12V*0.4A

3000

521

6.72 @12V*0.56A

4000

793

8.64 @12V*0.72A

5000

1095

10.56 @12V*0.88A

6000

1406

12.48 @12V*1.04A

6350

1510

13.32 @12V*1.11A



Notes:

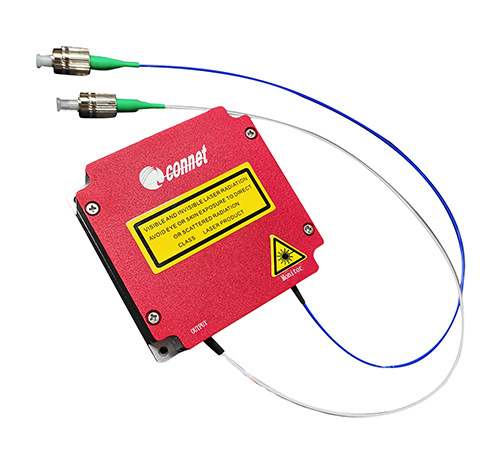

1. White pigtail is for Output and the blue is for Monitor.

2. Laser should be set in well cooling environment during long-term laser operation, otherwise the output power stability will be affected.

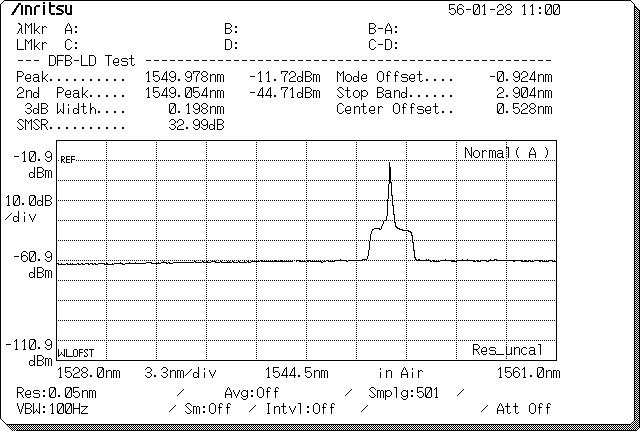

Optical Spectrum @5ns/500KHz (Max. 1.51W Average Power)

Fig.1

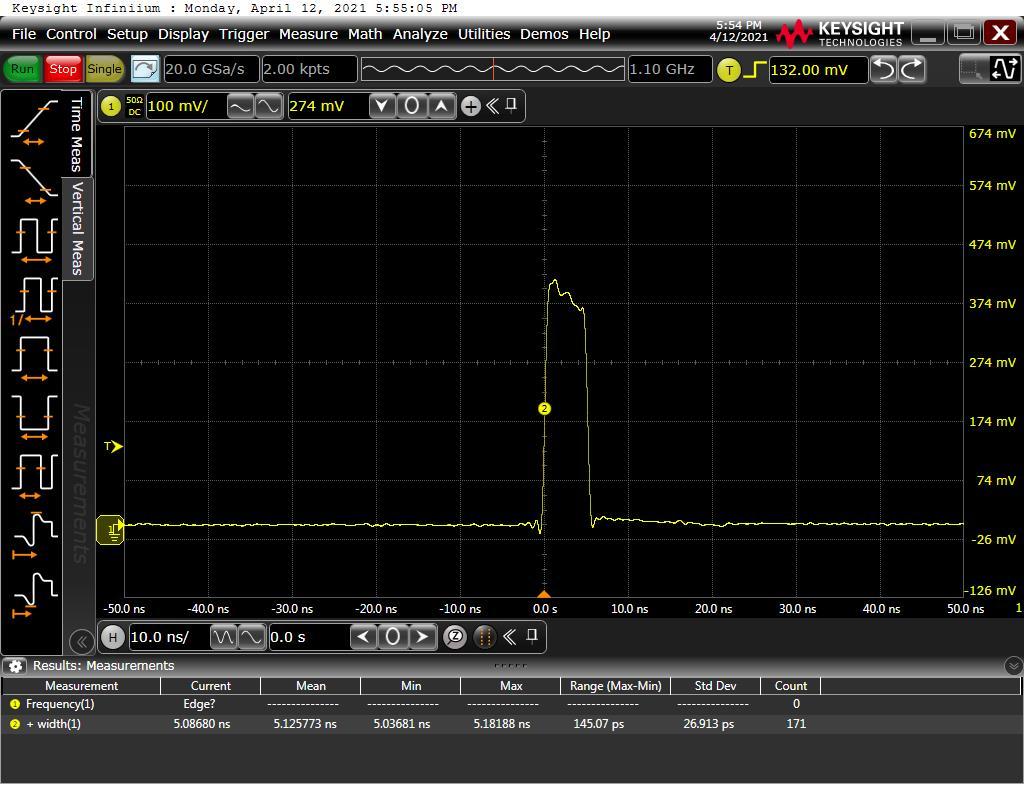

Pulse width @5ns

Fig. 2

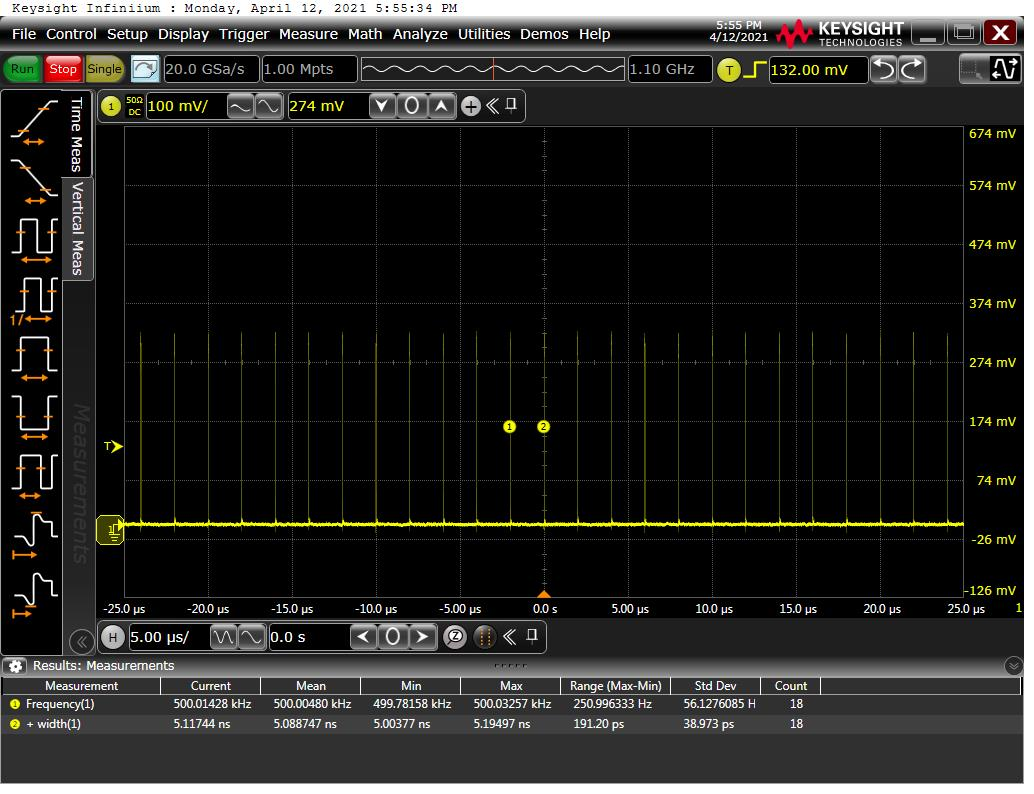

Repetition Rate @500kHz

Fig. 3

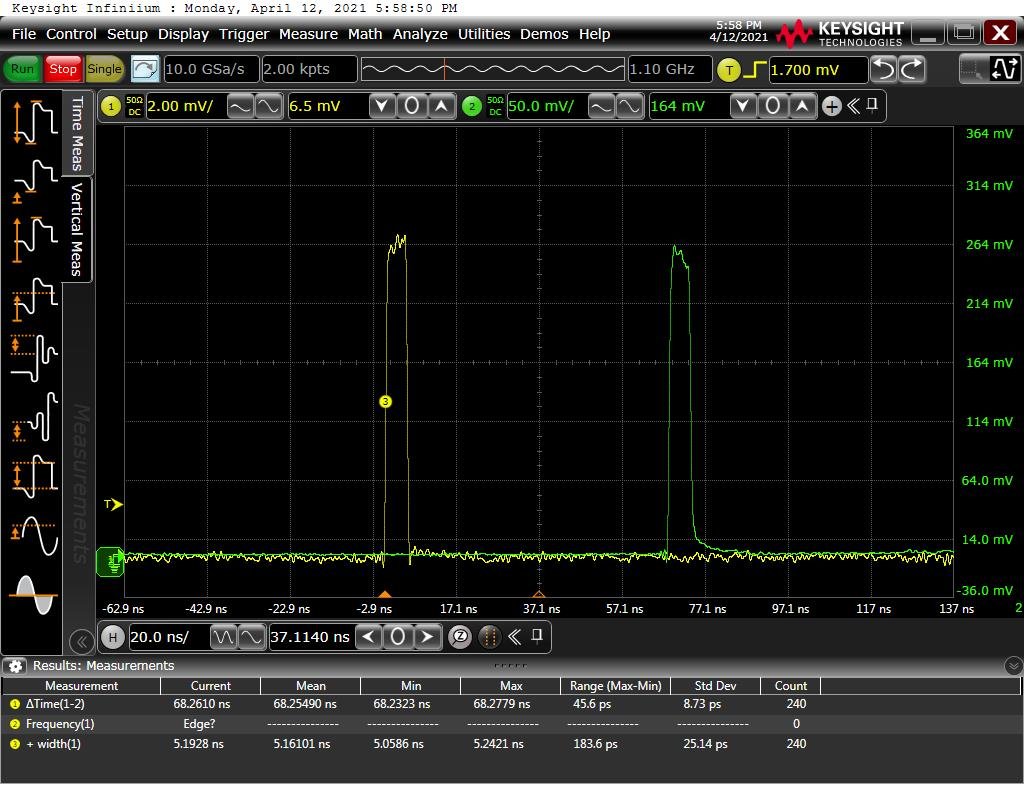

Delay between the Output Signal Light and the Monitor Light (68ns)



Fig. 4


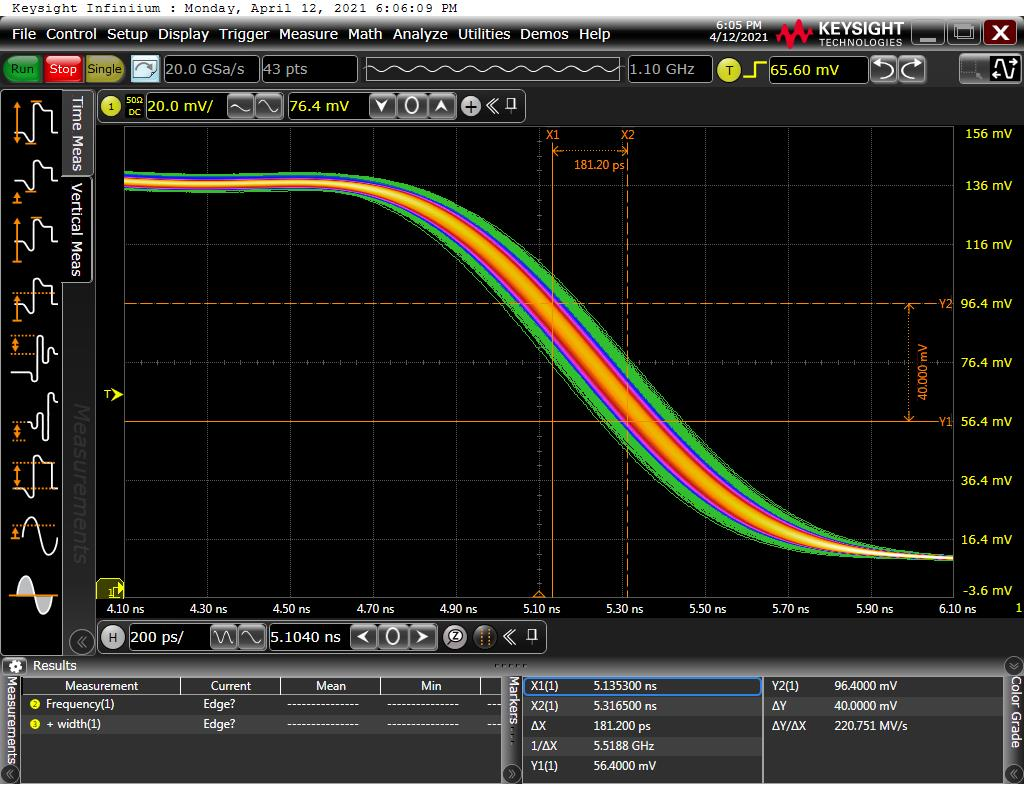

Pulse Jitter (182ps)


Fig. 5


Power Stability in Full Operating Temperature Range (-40~+65℃)

<±3%(RMS)/<±15%(Pmax-Pmin/Pave)

Fig. 6
