1532nm High Power CW Fiber Laser

Connet 1532nm high power CW fiber laser adopts all-fiber integrated design to achieve the high output power up to 30W, the narrow spectral width of <1nm and meanwhile the near single-mode beam quality. Due to the applied microprocessor-based control systems, the 1532nm high power CW fiber lasers are stable and maintenance-free.

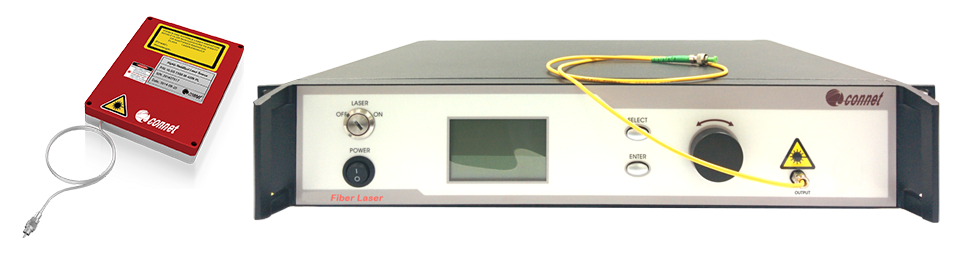

The benchtop system uses the LCD on the front panel to display the output power, the temperature and the other working status in real time. The LCD also can provide the alarm information in time. The interface is clear and easy to operate. For the convenience of system integration, the modular package is also available for option upon request.



Features

• High output power
• Excellent beam quality
• High stability and reliable performance
• All-fiber structure
• Single-mode output, PM optional



Applications

• LiDAR

• Remote sensing

• Test and measurement

• Pump source
• Other scientific research







 Main Test Data:

Parameter	Test Result
Max Output Power	32.0W
Central Wavelength	1532.77nm
Operation Mode	CW
Polarization	Random
Linewidth	0.04nm
Beam Quality	<1.5
Output Isolator	None
Output Fiber Length	2m
Output Fiber Type	LMA-GDF-25/300
Output Connector	End Cap
Output Spectrum	Fig. 2





 Product Information and Test Equipment:

Product Name	1532nm High Power CW Fiber Laser
P/N	VFLS-1532-B-30-HP
Main Test Equipment	Power Meter (OPHIR, FL250A-BB35)
	Optical Spectrum Analyzer (Anritsu, MS9710C)





Test Environment and Power Supply:

Parameter	Specification
Power Supply	100~240VAC, 50/60Hz
Storage Temperature	-30℃~ +70℃
Operating Temperature	+10~+50℃
Test Temperature	25℃
Humidity	<90%





Schematic Diagram of Test:

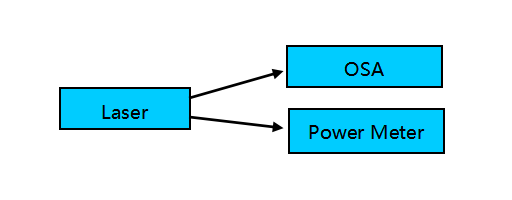

Fig. 1：Schematic Diagram of Output Spectrum and Power Measurement

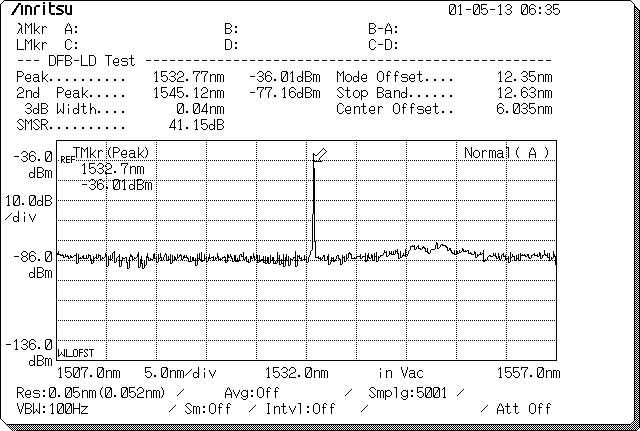

Fig. 2：Output Spectrum (32W)
