1064nm High Power Short Pulse Fiber Laser for LiDAR (VFLS-1064)

Connet Laser Technology Co., Ltd.2018-11-06



Connet 1064nm high power short pulse fiber laser for LiDAR is a fiber laser source with high peak power and high pulse energy. Using the MOPA configuration and the optimized design of the multi-stage amplification, the laser can achieve the high peak power with the ns level pulse width. This laser is the ideal source for LiDAR applications like 3D scanning, telemetry and range finding.



The VENUS series 1064nm high power short pulse fiber laser for LiDAR employs the module package with compact and rugged design. It has wide operating temperature range with low power consumption. In addition, the pulse output also can be achieved by external TTL trigger signal, which is very suitable for system integration.




Features:

• Central wavelength: 1064nm
• High peak power: up to 100kW
• Maximum average power: up to 5W
• Repetition rate adjustable: 1kHz-1MHz
• Pulse width: 0.5-200ns
• Nearly diffraction-limited beam quality


Applications:

• TOF LiDAR
• Range finding
• Target detection
• 3D scanning
• Other scientific research





Main Test Data:

Parameter

Test Result

Operating Temperature

-10~500C

Central Wavelength

1064nm

Output Power@7ns/200KHz

5W

Pulse Width Range

3~7ns

Typical (Test) Pulse Width

7ns

Repetition Rate Range

1~200KHz

Typical (Test) Repetition Rate

200KHz

Line Width (FWHM)

<1nm

Output Isolation

>35dB

Storage Temperature

-400C ~ +850C

Output Fiber Type

SM-GDF-10/125, NA:0.08

Optical Connector

FC/APC

Reference Light

Blue Jacket

Main Output Fiber

White Jacket

Output Fiber length

0.5m

Power Consumption

<40W

Power Stability (8hrs)

<4%




Product Information and Main Test Equipment:

Product

1064nm High Power Short Pulse Fiber Laser for LiDAR



P/N

VFLS-1064-M-PL

Main Test Equipment

Power Meter (Coherent FieldMaxII-OP-21R)

1G Oscilloscope

1G Detector

ATT(Connet)




Test Environment and Power Supply:

Parameter

Specification

Power Supply

12~24VDC, 4A

Operation Temperature

-10~500C

Humidity

<90%

Dimension

200(L)*135(W)*60(H)mm

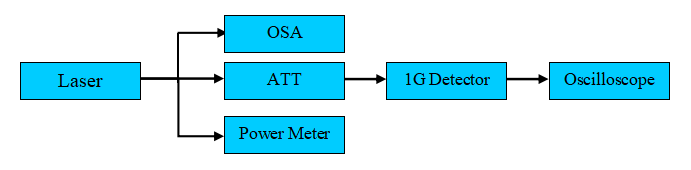

Schematic Diagram of Test:

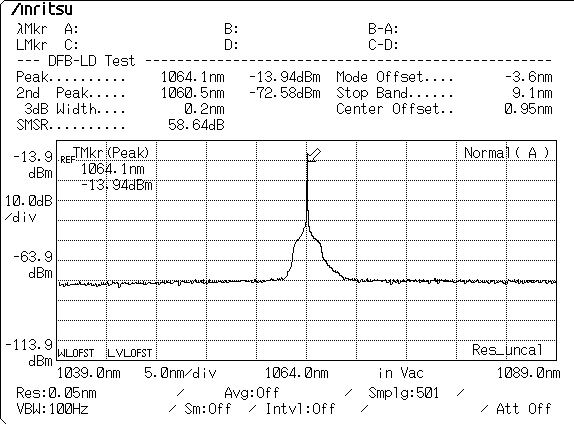

Measured Spectrum @ 7ns/200KHz, 25℃:

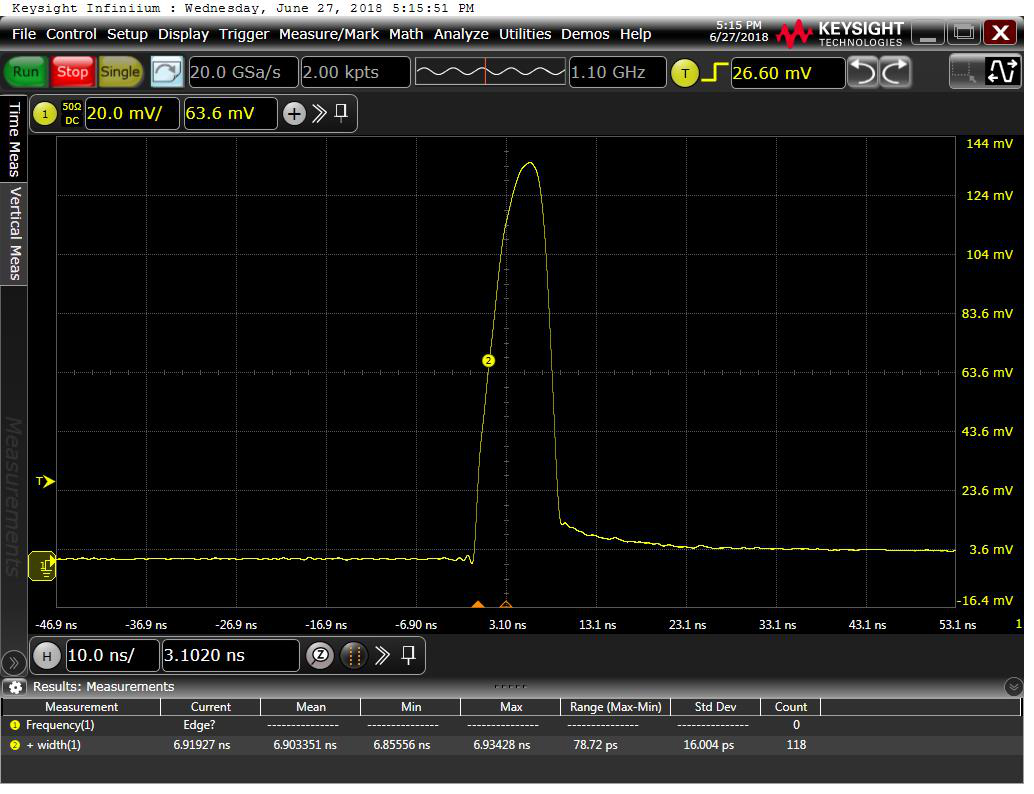

Pulse Width @ 7ns/200KHz:

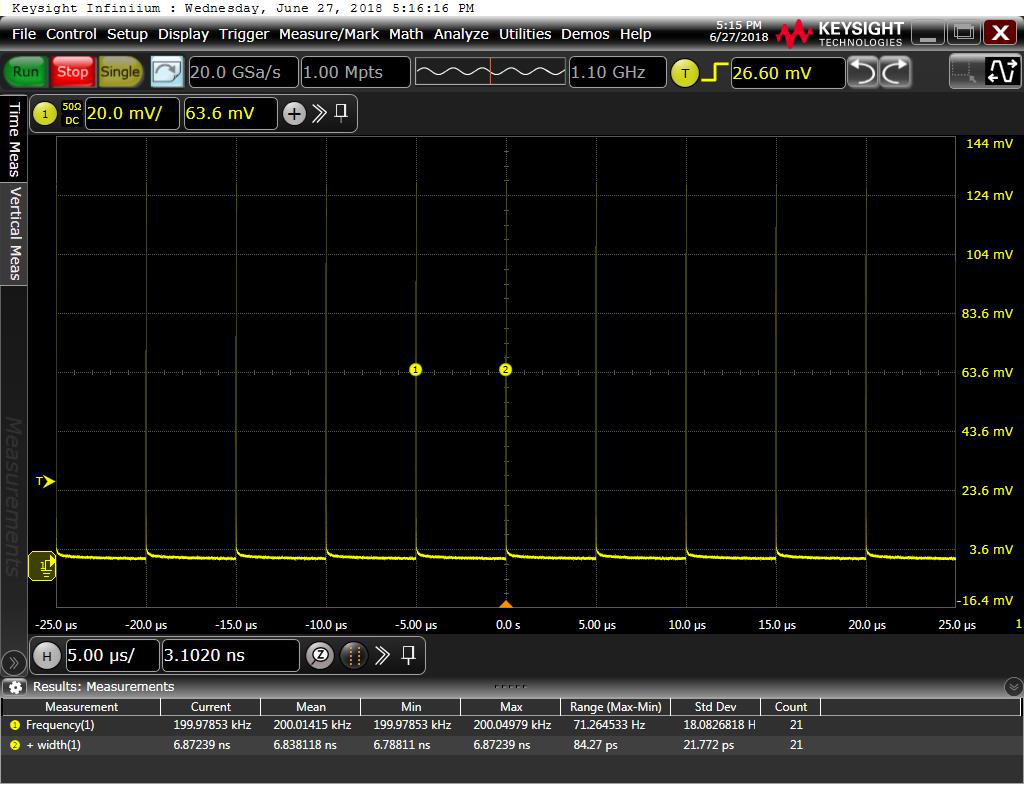

Repetition Rate @ 7ns/200KHz:

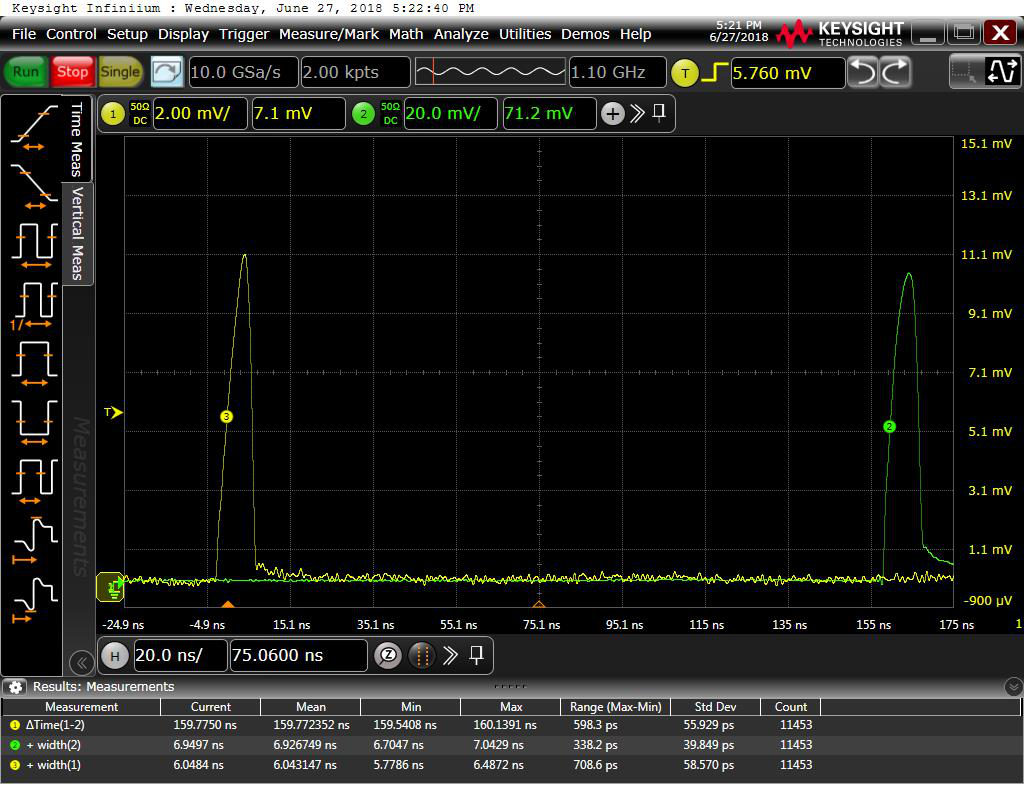

Pulse delay between the reference light and the main output light: 159.77ns.

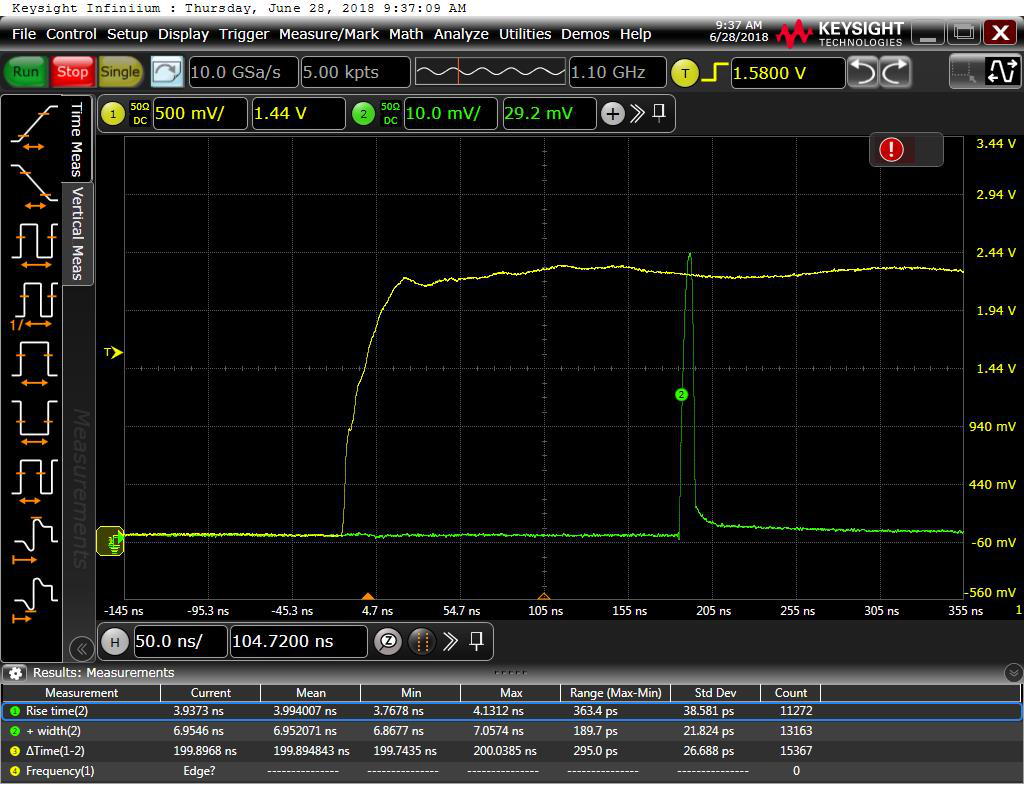

Delay and jitter between the synchronous output and the main output light are 199.89ns and 295.0ps.



Notes:
1. If using the laser for a long time, please place it in a good heat-dissipation environment.
2. Keep the output end face clean.3. Before adjusting the repetition rate from high to low, please set the main output power to zero and then reset the output power according to the actual parameters. The reason is that adjusting the repetition rate from high to low with the same output power and pulse width will cause the single pulse energy sudden increasing. This will easily damage and the output end face and the laser. There is no such influence while adjusting the repetition rate from low to high.
4. The maximum output average power is 5W@7ns/200KHz. When the repetition rate is reduced, the main average output power needs to be reduced to ensure that the pulse peak power is less than 7KW.
5. When the repetition rate is 200KHz and the pulse width is 3~7ns, the main output average power can be up to 5W.
