Connet Laser Technology Co., Ltd.
2018-08-27

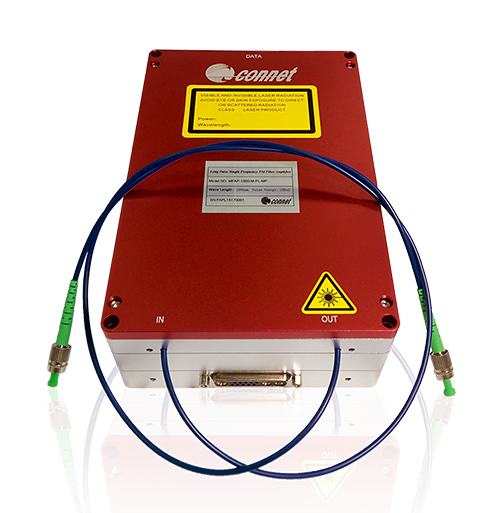

The 1550nm long pulse single frequency polarization maintaining fiber amplifier of Connet is a modular fiber amplifier specially designed for long pulse (100ns-2us) applications. Based on the eye-safe operating wavelength, this fiber amplifier can achieve the high pulse energy output up to 800uJ.
This 1550nm long pulse single frequency PM fiber amplifier is suitable for amplifying the single frequency narrow-linewidth light source. The linewidth can be narrowed to kHz level. Through the multi-stage optical amplification in the optimized design, this type of amplifier can suppress the nonlinear effects, such as the stimulated Brillouin scattering (SBS), realize the high pulse energy output, maintain the spectral characteristics of the signal light, meanwhile obtain the near diffraction-limited beam quality and keep the high polarization extinction ratio (PER) at the same time, which is the ideal amplifier for the coherent Doppler wind-measurement LIDAR system.
• Eye-safe wavelength: 1550nm
• Single pulse energy: 800uJ
• Adjustable repetition rate: 5-20kHz
• Pulse width: 100-2000ns
• Near diffraction-limited beam quality: M2<1.5
• Doppler wind-measurement LIDAR
• Environment monitoring
• Pollution monitoring
• Other scientific research
|
Parameter |
Test Result |
| Input Power of CW Seed Laser |
5mW |
| Output Power of CW Local Oscillator Laser |
4.5mW |
| Output Power of CW Amplifier |
80mW |
| Input Average Power of Pulsed Amplifier |
30uW |
| Output Average Power of Pulsed Amplifier1@25℃ (@Full Pulse Width, 1us/5kHz) |
1.5W |
| Output Average Power of Pulsed Amplifier1@-40℃ (@Full Pulse Width, 1us/5kHz) |
1.53W |
| Output Average Power of Pulsed Amplifier1@+60℃ (@Full Pulse Width, 1us/5kHz) |
1.31W |
| Polarization Extinction Ratio (PER) |
>18dB |
| Output Average Power Stability of CW Amplifier |
<3% |
| Output Average Power Stability of Pulsed Amplifier |
<5% |
| Input/output Fiber Type |
PM1550-XP 0.9mm PVC jacket |
| Pulse Output Fiber Type |
PLMA-GDF-25/300 3.0mm PVC jacket |
| Input/output Fiber Connector |
FC/APC |
| Input/output Fiber Length |
0.5m |
| Pulse Output Fiber Length |
0.3m |
| Input Isolation |
>30dB |
| Output Isolation |
>20dB |
| Input Pulse Waveform & Repetition Rate of Pulsed Amplifier @Full Pulse Width 1us/5kHz |
See Fig. 1, Fig. 2 |
| Output Pulse Waveform of Pulsed Amplifier@Full Pulse Width 1us/5kHz |
See Fig. 3 |
| Ouput Spectrum of Pulsed Amplifier@Full Pulse Width 1us/5kHz, Average Power 1.5W |
See Fig. 4 |
| Correspondence between the Pulsed Amplifier Output Power and the Power Consumption @25℃ |
See Form 1 |
Notes: The output power is measured with the fiber connector.
|
Product |
1550nm Long Pulse Single Frequency PM Fiber Amplifier |
|
P/N |
CoLIA-1550-M-SF-LP |
|
S/N |
201806134 |
|
Main Test Equipment |
Seed Laser (Connet SF PM Fiber Laser) |
|
Power Meter（FieldMaxII-TO-PM30I） |
|
|
OSA (Optical Spectrum Analyzer) (Anritsu MS9710) |
|
|
Oscilloscope (KEYSIGHT DSOS104A 1G) |
|
|
1G Detector |
|
|
AOM (Acousto-optic Modulator) |
|
|
FWG (Function Waveform Generator) (RIGOL DG5101) |
Test Environment and Power Supply
|
Parameter |
Specification |
|
Power Supply |
18~36V |
|
Control Interface |
RS485 |
|
Storage Temperature |
-40℃ ~ +75℃ |
|
Test Temperature |
-40℃ ~ +60℃ |
|
Humidity |
<90% |

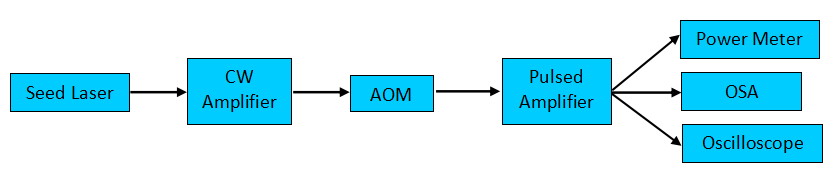

Schematic Diagram of Test

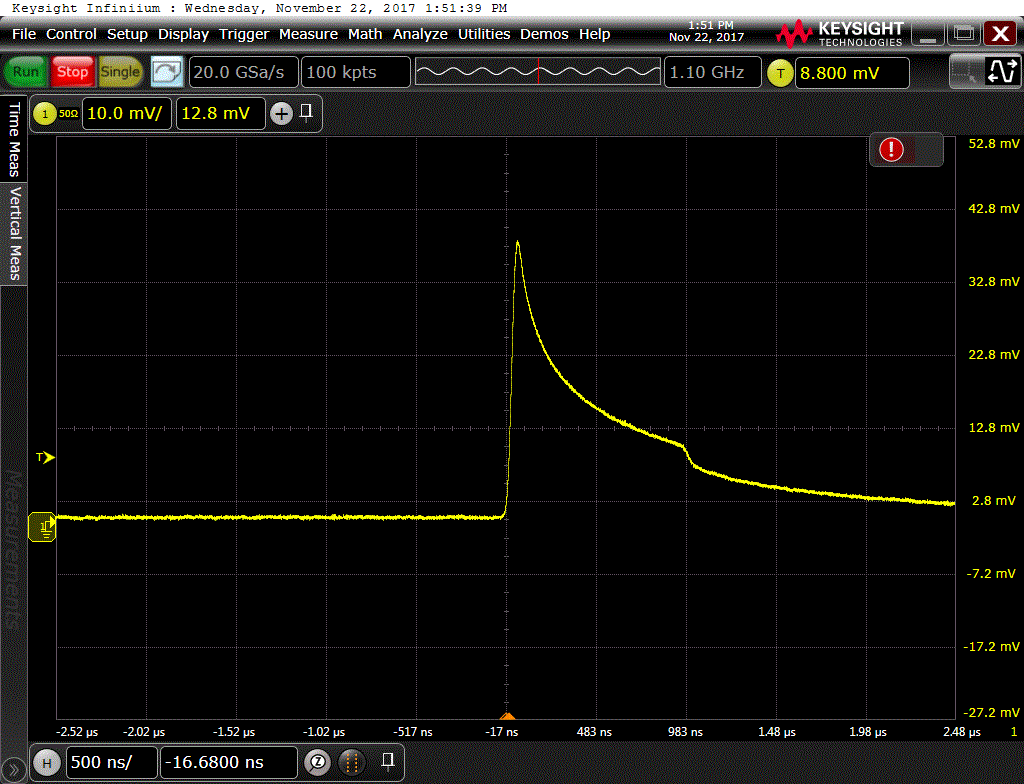

Fig. 1 Input Pulse Waveform of Pulsed Amplifier@Full Pulse Width 1us/5kHz

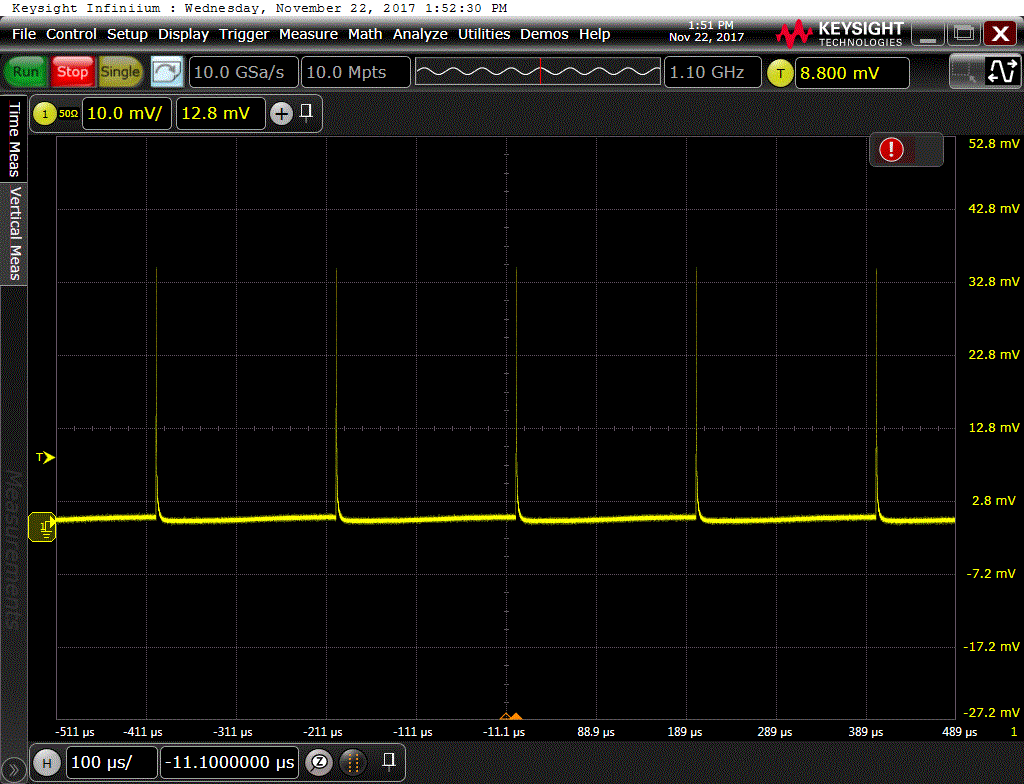

Fig. 2 Input Pulse Repetition Rate of Pulsed Amplifier@Full Pulse Width 1us/5kHz

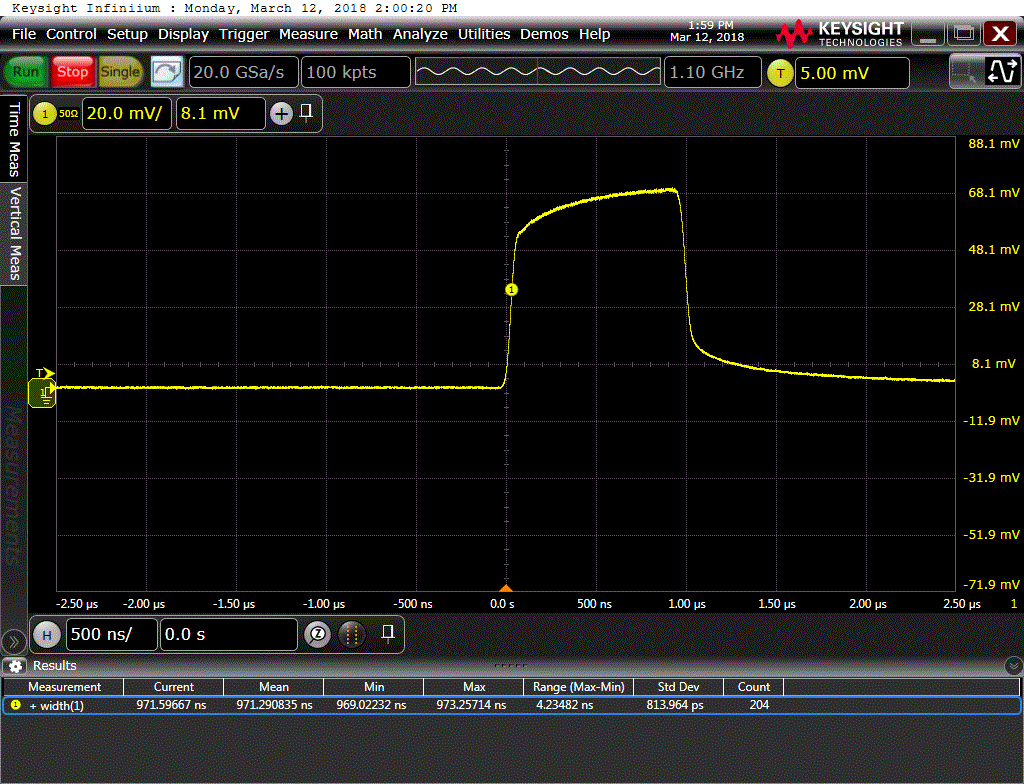

Fig. 3 Output Pulse Waveform of Pulsed Amplifier@Full Pulse Width 1us/5kHz

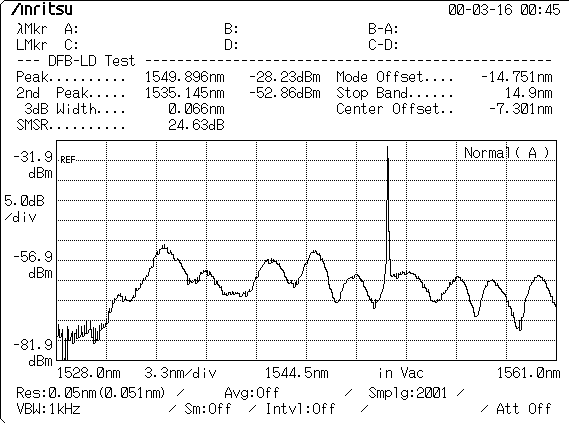

Fig. 4 Ouput Spectrum of Pulsed Amplifier@Full Pulse Width 1us/5kHz, Average Power 1.5W
|
Continuous Amplification Output Average Power (mW) |
Current (A) |
Power Consumption (W) |
Pulsed Amplification Output Average Power (W) |
Current (A) |
Power Consumption (W) |
|
10 |
0.13 |
3.12 |
0.1 |
0.50 |
12 |
|
20 |
0.15 |
3.6 |
0.2 |
0.57 |
13.68 |
|
30 |
0.17 |
4.08 |
0.3 |
0.64 |
15.36 |
|
40 |
0.17 |
4.08 |
0.4 |
0.72 |
17.28 |
|
50 |
0.18 |
4.32 |
0.5 |
0.80 |
19.2 |
|
60 |
0.20 |
4.8 |
0.6 |
0.88 |
21.12 |
|
70 |
0.21 |
5.04 |
0.7 |
0.96 |
23.04 |
|
80 |
0.22 |
5.28 |
0.8 |
1.05 |
25.2 |
Form 1 Correspondence between the Pulsed Amplifier Output Power and the Power Consumption @25℃, Input Voltage 24VDC
