Connet High Power Double-Clad Fiber Bragg Grating

Connet Laser Technology Co., Ltd.2020-01-22



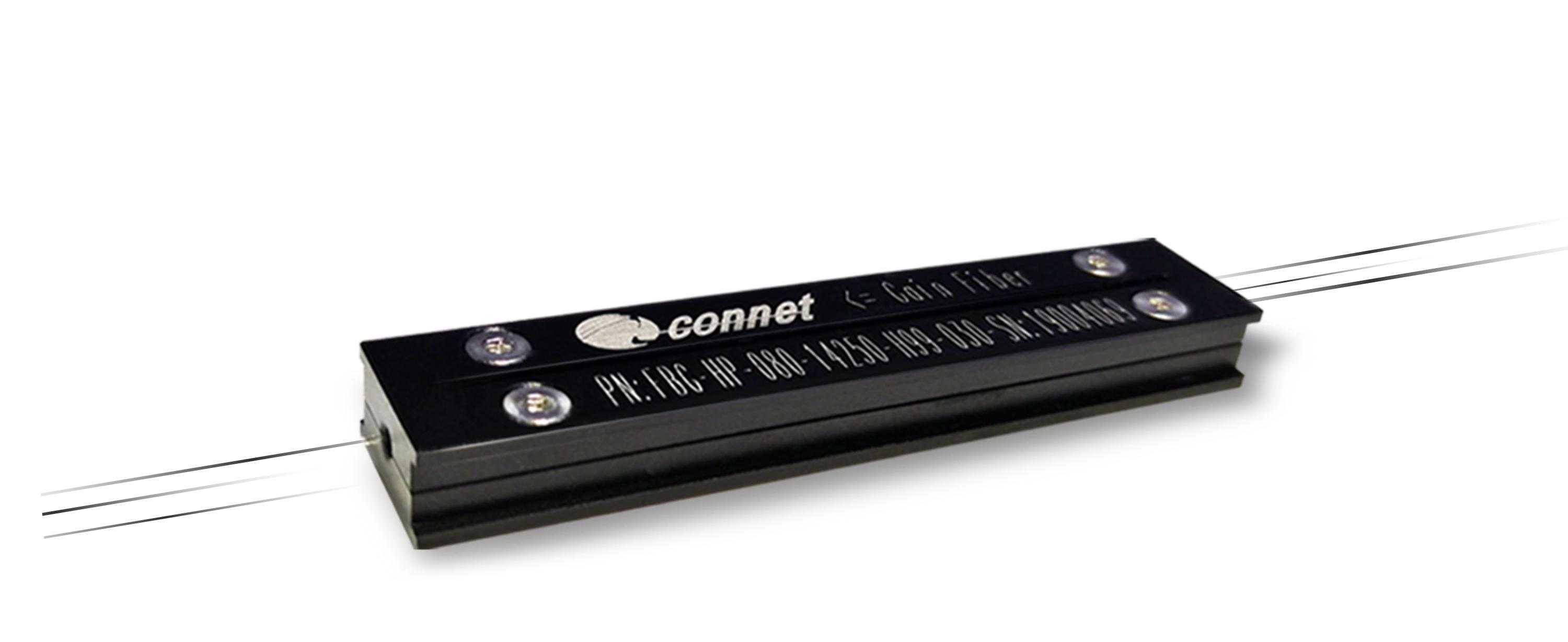

Connet High Power Double-Clad Fiber Bragg Grating (also known as Fiber Laser Cavity Mirror) adopts the classic phase mask engraving technique specially designed for high power CW and pulsed fiber lasers. From Single Mode fiber to Large Mode Area fiber all can be used to written Connet high power FBGs and the power handling capacity can be up to be higher than 3kW.



Connet High Power Double-Clad Fiber Bragg Grating pair consist of High Reflector (HR) and Low Reflector (LR). The Low Reflector, also called as Output Coupler (OC), is used to select the working wavelength of the fiber laser. Connet high power FBGs use the chirped phase mask technology to provide the precisely matched HR FBGs and LR FBGs with different bandwidths upon users’ requests.



After years of research and development, Connet has mastered the comprehensive technology of high-power kW level Fiber Bragg Gratings including the pretreatment technology of Large Mode Area Double-Clad Fiber, the hydrogen carrying technology of Large Mode Area Double-Clad Fiber, precisely controlled grating engraving technology, the coating and packaging technology of Large Mode Area Double-Clad Fiber Bragg Gratings and the testing technology for high power Large Mode Area Double-Clad Fiber Bragg Gratings.





Connet High Power Double-Clad Fiber Bragg Gratings can be divided into three main series according to the operating wavelengths:


1.0um Series High Power Double-Clad Fiber Bragg Grating

Fiber Type

3dB Bandwidth (HR)/Reflectivity

3dB Bandwidth (OC)/Reflectivity

Pump Power Handling Capability

Signal Power Handling Capability

20/400

1-4nm/99.5%

0.5-2.0nm/5%-30%

3000W

2000W

20/400

1-4nm/99.5%

0.5-2.0nm/5%-30%

4000W

3000W

22/400

1-4nm/99.5%

0.5-2.0nm/5%-30%

3000W

2000W

25/400

1-4nm/99.5%

0.5-2.0nm/5%-30%

3000W

2000W

14/250

1-4nm/99.5%

0.5-2.0nm/5%-30%

2200W

1500W

10/130

1-4nm/99.5%

0.5-2.0nm/5%-30%

500W

300W



1.5um Series High Power Double-Clad Fiber Bragg Grating

Fiber Type

3dB Bandwidth (HR)/Reflectivity

3dB Bandwidth (OC)/Reflectivity

Pump Power Handling Capability

Signal Power Handling Capability

6/125 or 9/125

1-4nm/99.5%

0.5-2.0nm/5%-30%

50W

10W

12/130

1-4nm/99.5%

0.5-2.0nm/5%-30%

100W

20W

25/250 or 25/300

1-4nm/99.5%

0.5-2.0nm/5%-30%

800W

200W

30/250

1-4nm/99.5%

0.5-2.0nm/5%-30%

800W

200W



2.0um Series High Power Double-Clad Fiber Bragg Grating

Fiber Type

3dB Bandwidth (HR)/Reflectivity

3dB Bandwidth (OC)/Reflectivity

Pump Power Handling Capability

Signal Power Handling Capability

10/130

1-4nm/99.5%

0.5-2.0nm/5%-30%

300W

50W

25/250

1-4nm/99.5%

0.5-2.0nm/5%-30%

1000W

200W

25/400

1-4nm/99.5%

0.5-2.0nm/5%-30%

1000W

200W



Notes: HR/LR FBGs with uniform periods are available for options. The 3dB bandwidth (FWHM) of LR FBGs can be chosen from 0.01nm to 0.3nm.




With deep understanding and rich experience on double-clad fiber and fiber laser technology, the High Power Double-Clad Fiber Bragg Grating pairs provided by Connet have the following outstanding features:

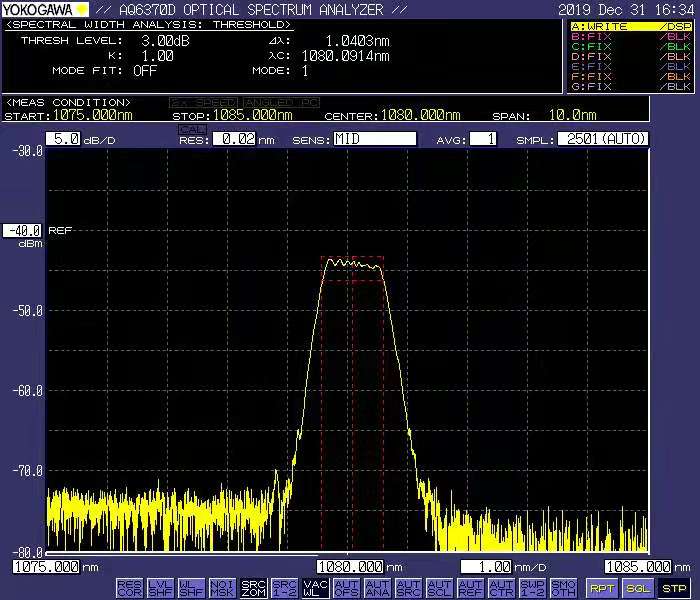

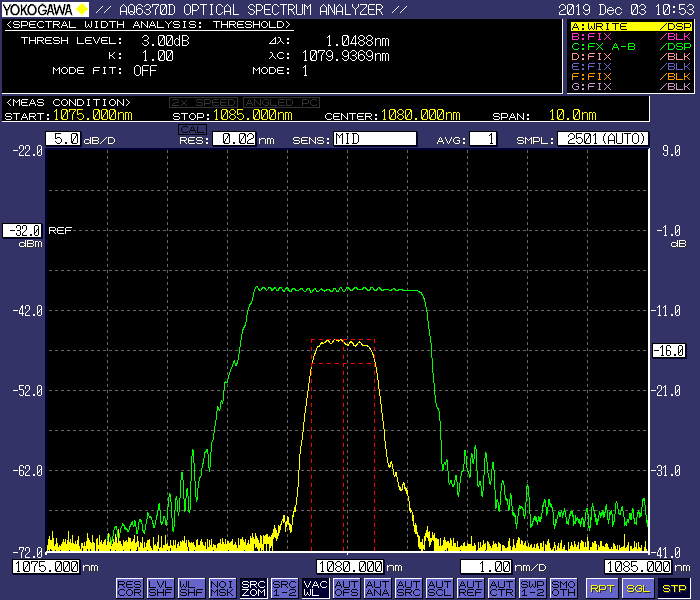

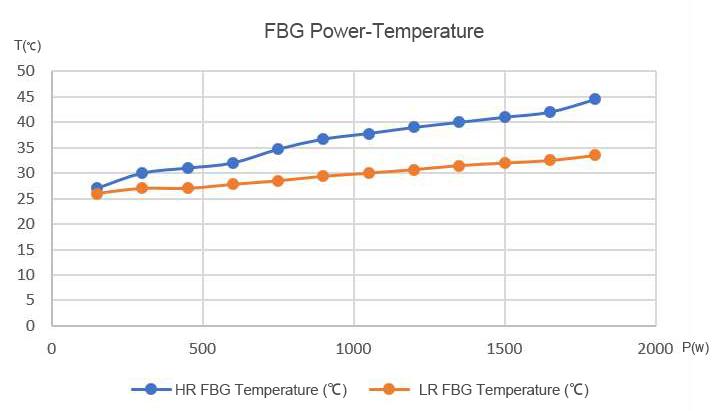

• Extremely low temperature rise slope efficiency. Suitable for high power work.


• Optimized design of LR FBGs to reduce the reverse light leakage of HR FBGs.


• Excellent reflection/transmission spectrum to raise the threshold of Stimulated Raman Scattering (SRS).


With more than 10 years cultivation in fiber laser market, Connet has a deep understanding of the fiber laser market. Based on the good domestic market position, Connet has been striving to develop the overseas markets and received great feedbacks from customers. Over many years of research and investment, Connet has fully understood and mastered the core technology of high power double-clad fiber gratings. Connet now can manufacture high power double-clad fiber gratings in batches and also can provide the custom services upon customers’ requirements for different applications.
