1.0um High Power Single Frequency Polarization Maintaining Fiber Amplifier (100W)

Connet Laser Technology Co., Ltd.2020-03-13

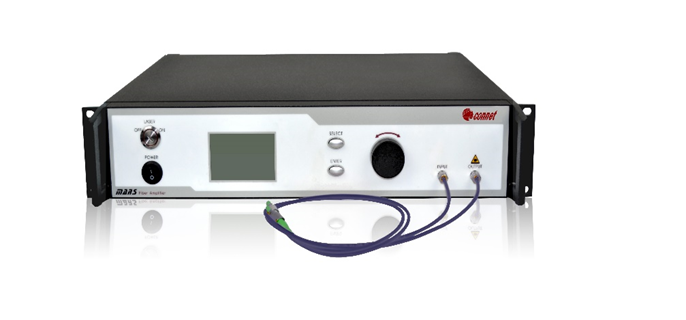

The MARS series high power single frequency polarization maintaining fiber amplifiers of Connet are designed specifically for the ultra-narrow linewidth single frequency laser source, such as the fiber lasers based on the principle of DFB or DBR. This kind of amplifier has the capability of boosting the low power optical signal at kHz level up to 100W output power and preserves the spectral property of the input signal. The MARS series amplifiers use the high power, high-performance, multi-mode pumps internally, employ the technology of double cladding fiber amplification, and have the integrated design in all polarization-maintaining structure. The output power can be continuously tunable. The MARS series fiber amplifiers are the integral Turn-Key system with the microprocessor inside for controlling. The front panel is equipped with the switch to start the laser, the LCD to display the state of the power and the knob to adjust the output power.


Thanks to the extensive experience in handling the double cladding fiber, Connet conducts the proper optimal design for the high power polarization maintaining fiber amplifiers to achieve the high efficiency output and meanwhile suppress the nonlinear effects of the fiber. The unique thermal treatment technology guarantees that the benchtop fiber amplifier can be operated stably for a long time. The high-speed response protection circuit monitors the power of the input and the output signals automatically so that it can cut down the operation of the high power pump in case of the falling off of the input signal to ensure the safety of the whole system.


Connet MARS series high power single frequency polarization maintaining fiber amplifiers adopt the unique polarization control technology and the advanced polarization-maintaining fiber fusion process, which guarantees the stable linear polarization output at high power. The MARS series high power polarization-maintaining fiber amplifiers can be widely used in scientific research, coherent beam combining, coherent detection and fiber sensing system, etc.





Features

• High output power
• Low noise figure
• Turn-Key system
• All PM fiber structure, high PER
• High stability, high reliability



Applications

• Coherent detection
• Coherent combining
• Atomic cooling and atomic trapping
• Fiber sensing
• Frequency doubler





Main Test Data:

Parameter

Test Result

Test Wavelength

1064.25nm

Test Light Source Linewidth

10KHz

Input Power

>1mW

Test Input Power

5mW

Output Power1

100W

Input Fiber Type

PM980

Input Fiber Connector2

FC/APC

Output Fiber Type

PLMA-GDF-25/400

Output Fiber Connector2

Collimator

Output Spot size

5mm

Output Divergence Angle

<0.5mrad

Output Spectrum

Fig. 2

Dimension

510x480x150mm

 Notes】1. The output power is measured with the optical connector.

                  2. Pay attention to keep the input and output end faces clean.




 Product Information:

Product

1.0um High Power Single Frequency Polarization Maintaining Fiber Amplifier

P/N

MFAP-1064-B-100-SF: PM

Main Test Equipment

Optical Spectrum Analyzer(Anritsu MS9710C)

Power Meter(OPHIR NOVAII-3A )




 Test Environment and Power Supply:

Parameter

Specification

Power Supply

100~240VAC, 50Hz/60Hz

Test Temperature

25℃

Humidity

<90%

Warm-up Time

<30mins






Schematic Diagram of Test:

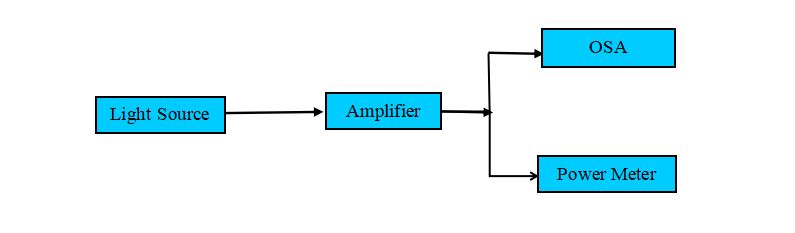

Fig. 1 Schematic Diagram for Output Spectrum and Power Measurement




Measured Spectrum:

Fig. 2 Measured Spectrum @100W Output

Remarks:


  1. The Monitor on the front panel is for monitoring the backlight. To ensure the safe use of  the amplifier, please monitor the output power of this port in real time.
  2. The actual power value of the return light=Monitor output powerx100. When the output power is higher than 60W, please adjust the polarization state of the input light to make the actual power of the return light to be no greater than 0.6mW.
  3. The actual power of the return light is less than 20mW at the output power of 100W.
  4. Please adjust the step to be <5W on the panel while the output power>60W.
  5. Press Laser OFF while the amplifier output power is higher than 70W, please wait 5 minutes before turning off the power.
