The CoLID series 1550nm short pulse fiber laser for LiDAR of Connet is an eye-safe pulsed laser source with high peak power and high pulse energy. Based on the Master Oscillator Power-Amplifier (MOPA) configuration and the optimized design of multi-stage optical amplification, the laser can reach high peak power and ns pulse width output. It is an ideal fiber laser source for LiDAR, telemetry and range finding.
Connet CoLID series 1550nm short pulse fiber laser for LiDAR adopts the mini disc type module and the rectangular type package with compact structure and small size. The laser has wide operating temperature range with low power consumption. The pulse output also can be achieved by external TTL trigger signal, which is very suitable for system integration.
At present, Connet CoLID series fiber lasers includes the below two subseries: CoLID-I and CoLID-II:
|
Series |
Package |
Dimension |
Net Weight |
Picture |
|

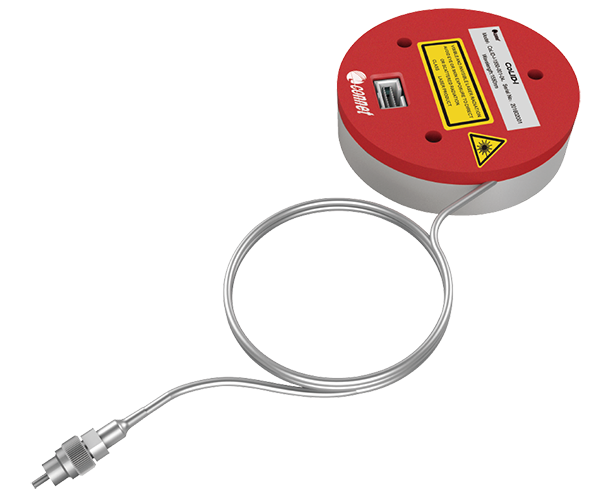

CoLID-I |
Mini disc type |
Φ90(D) x 23.5(H)mm |
300g |
|
|

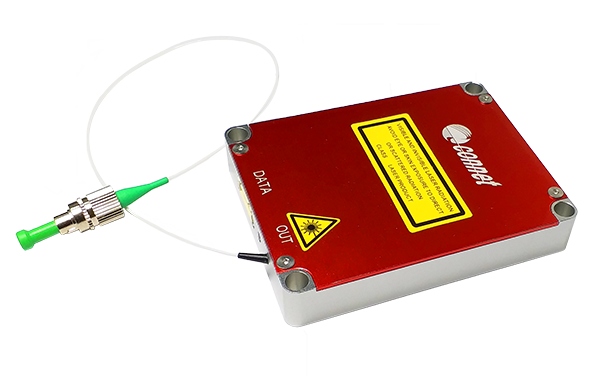

CoLID-II |
Rectangular type |
100(L)×90(W)×25(H)mm |
330g |
|

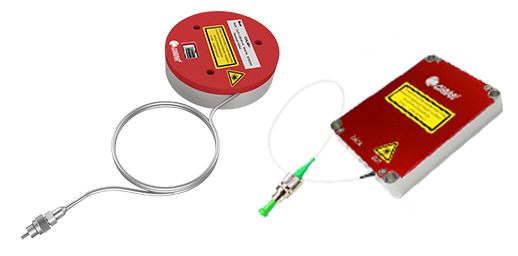

The customers can choose the lasers in different module sizes according to the actual configuration needs.
Features：
Applications:
Main Test Data:
|
Parameter |
Test Result |
|
Operating Temperature |
-35 oC ~+65oC |
|
Center Wavelength@2ns, 300KHz |
1549.91nm |
|
Output Power 12KW@2ns, 300KHz |
DA:1900 |
|
Pulse Width |
2ns |
|
Repetition Rate |
300KHz |
|
Storage Temperature |
-40oC ~ +75oC |
|
Output Fiber Type |
SMF-28e |
|
Output Fiber Connector |
FC/APC |
|
Reference Light |
Blue Jacket |
|
Output Signal Light |
White Jacket |
|
Output Fiber Length |
30cm |
Product Information and Main Test Equipment:
|
Product |
CoLID-I Series Short Pulse Fiber Laser for LiDAR |
|
P/N |
CoLID-I-1550-M-LPH |
|
S/N |
2018107040 |
|
Main Test Equipment |
Power Meter（Coherent FieldMaxII-OP-21R） |
|
1G Oscilloscope |
|
|
1G Detector |
|
|
ATT（Connet） |
Test Environment and Power Supply:
|
Parameter |
Specification |
|
Power Supply |
+5.5~+12VDC |
|
Operation Temperature |
-35 oC ~+65 oC |
|
Humidity |
<90% |
|
Dimension |
Φ90(D) x 23.5(H)mm |

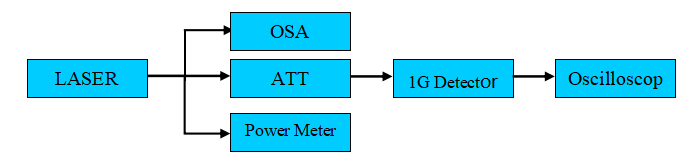

Schematic Diagram of Test:

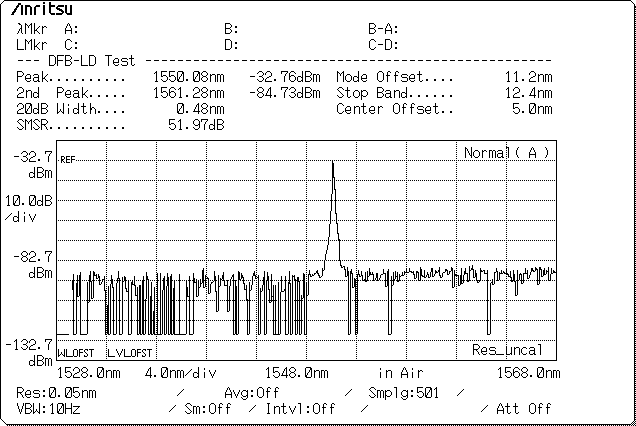

Measured Spectrum @2ns/300KHz:

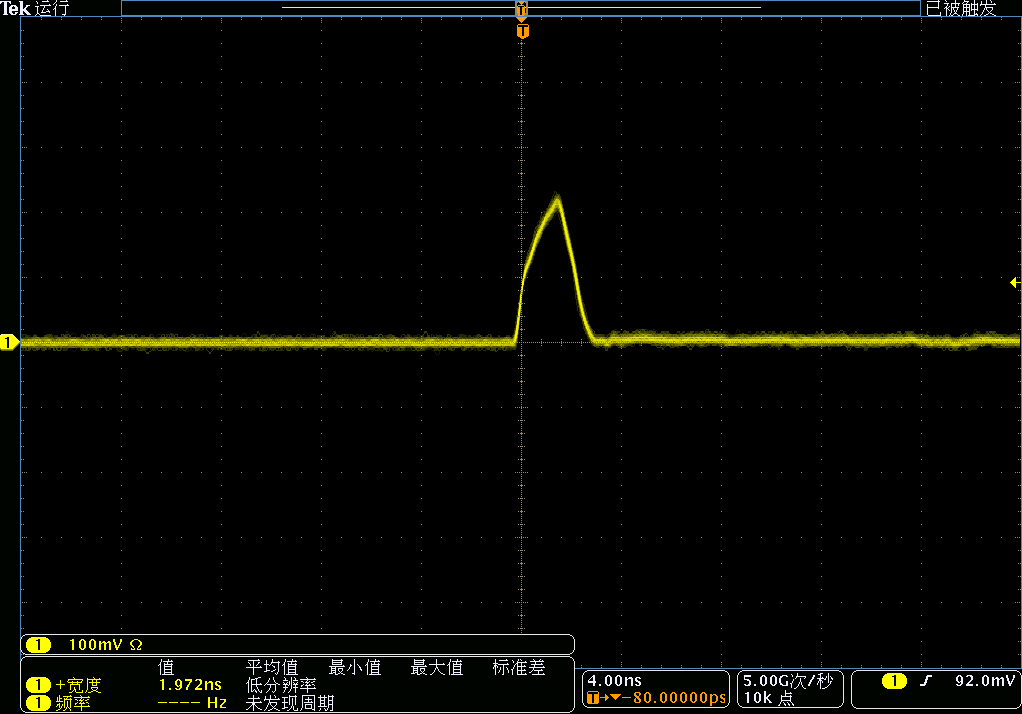

Pulse Width @2ns/300KHz:

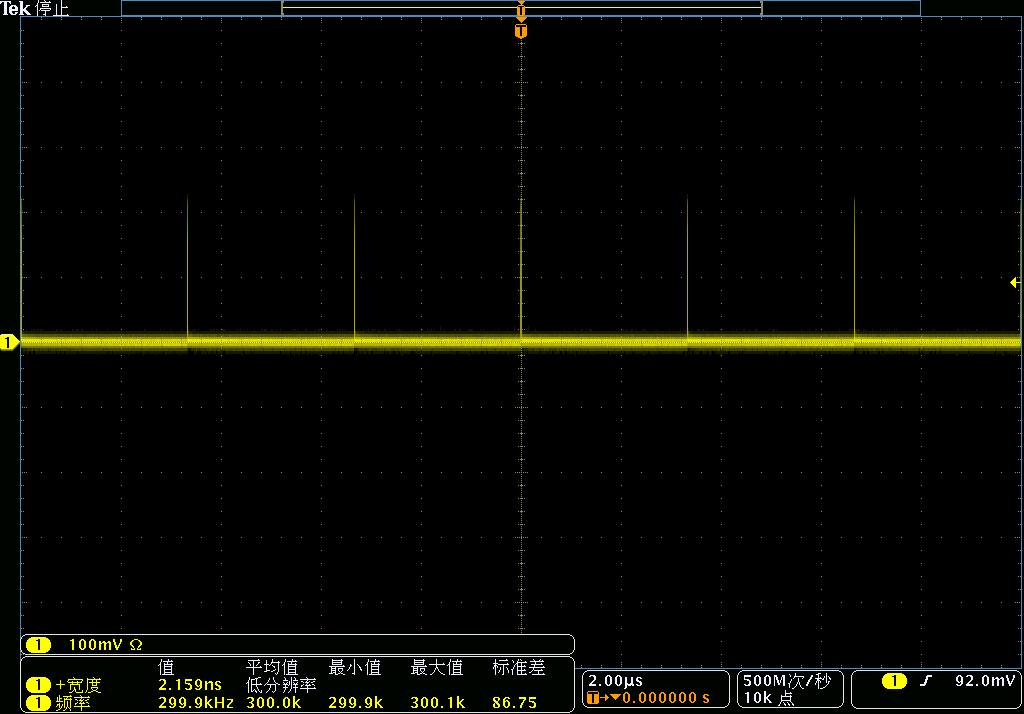

Repetition Rate @300KHz:

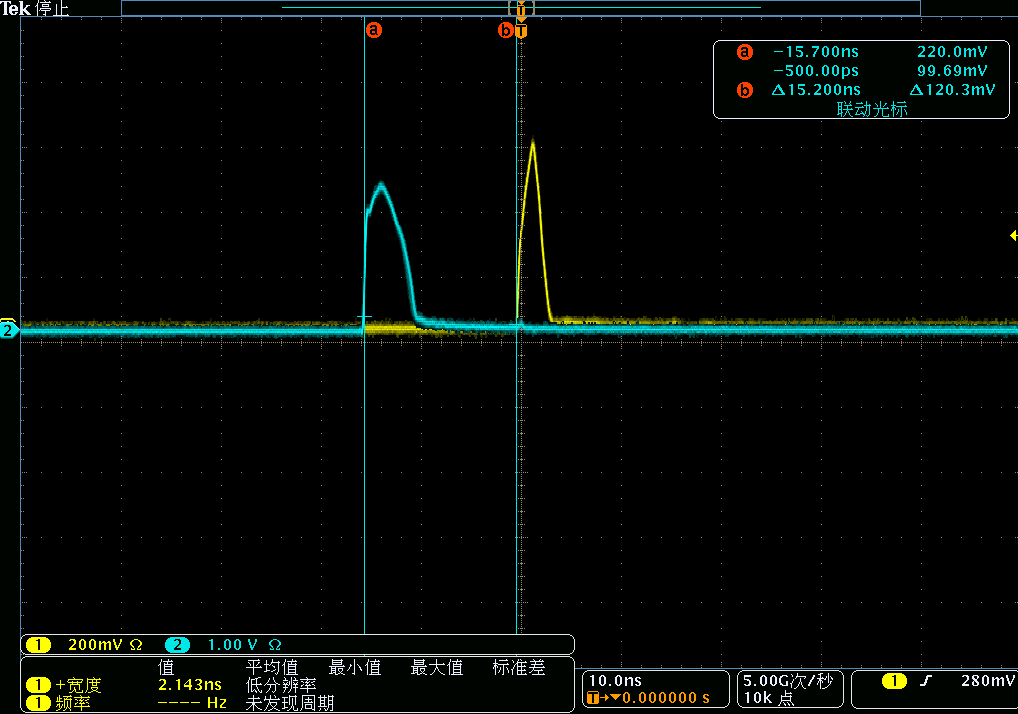

Pulse Delay between the First-stage Output and the Second-stage Output: 15.7ns
Corresponding Value of Pump Power Control Voltage (mV) and the Output Power:
|
Pump Control Voltage (mV） |
Output Power (mW) @2ns/300KHz |
|
300 |
50 |
|
500 |
195 |
|
700 |
352 |
|
900 |
519 |
|
1100 |
681 |
|
1300 |
835 |
|
1500 |
990 |
|
1700 |
1104 |
|
1900 |
1250 |
Notes:
1. The white cable is for signal light output and the blue one is for the first-stage monitor.
2. If using the laser for a long time, please place it in a good heat-dissipation environment.
