2.0um Band MHz Narrow Linewidth Fiber Laser
Connet 2.0um Band MHz Narrow Linewidth CW Fiber Laser adopts MOPA structure design, built-in MHz level narrow linewidth seed laser such as DFB and DBR to realize the high output power through the optimized design of cascaded fiber amplifiers. Connet has unique suppression technique on fiber nonlinear effects such as stimulated Brillouin scattering (SBS) while ensuring high power output.

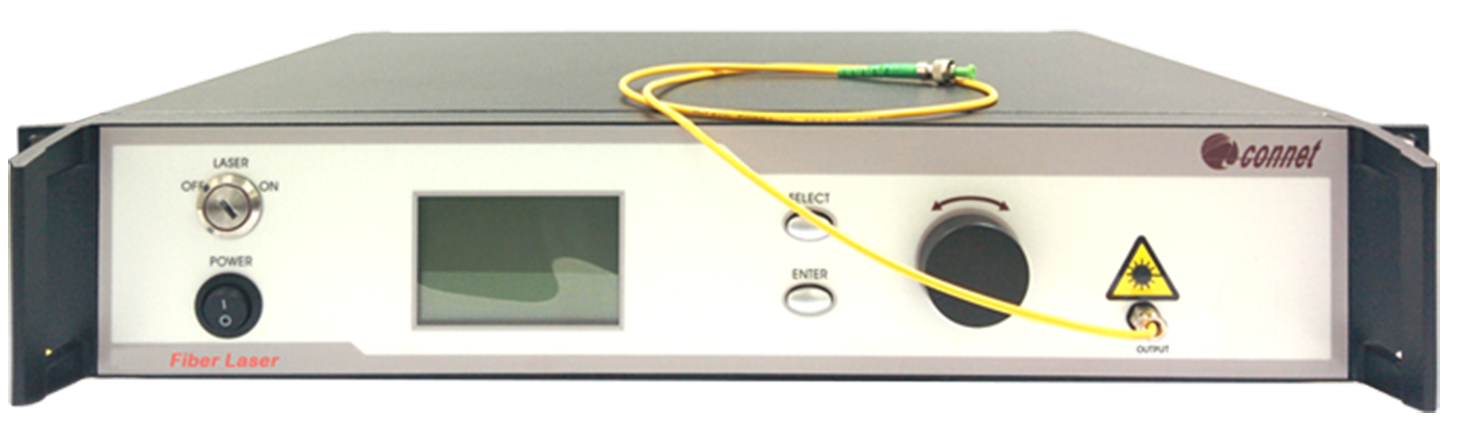

Connet 2.0um Band MHz Narrow CW Linewidth Fiber Laser adopts the integrated benchtop design. The important technical parameters are displayed on the LCD on the front panel. The output power is adjustable and easy to operate. It is suitable for laboratory applications. The OEM modular laser can be provided upon request for the convenience of users' system integration.
Specifications:
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
CoNL-2000-MHz-B-LP |
||
|
Center wavelength |
nm |
1908, 1940, 1950, 2004, 2050 |
||
|
Output power |
mW |
0.5 |
- |
100 |
|
Operation mode |
|
CW |
||
|
Output beam quality |
M2 |
<1.05 |
||
|
Linewidth |
MHz |
1 |
3 |
10 |
|
Side-mode Suppression Ratio (SMSR) |
dB |
30 |
40 |
- |
|
Polarization |
|
Linear |
||
|
Polarization Extinction Ratio (PER) |
dB |
20 |
- |
- |
|
Output power stability |
% |
- |
±0.5 |
±1.0 |
|
Wavelength tunable range |
nm |
- |
0.3 |
1 |
|
Output isolation |
dB |
35 |
- |
- |
|
Output power tunable range |
% |
10 |
|
100 |
|
Operating temperature |
℃ |
10 |
- |
50 |
|
Storage temperature |
℃ |
-40 |
- |
85 |
|
Power supply |
VAC |
100-240 |
||
|
Main output fiber |
|
PM Fiber |
||
|
Main output fiber length |
m |
> 0.5 |
||
|
Main output fiber connector |
|
FC/APC or Collimator |
||
|
Output fiber for seed laser monitor |
|
PM Fiber (optional) |
||
|
Fiber length |
m |
> 0.5 |
||
|
Fiber connector |
|
FC/APC |
||
|
Dimension |
|
19”2U |
||
Ordering information:
· CoNL-XXXX-MHz-B-YYYY-FA/Col-LP
XXXX: Operating wavelength
YYYY: Output power in mW
FA: FC/APC, Col: Collimator
Features:
· MHz linewidth single frequency output
· Low relative intensity noise
· High frequency stability
· Linear polarization, high PER
· Various wavelengths available
Applications:
· Atomic cooling and trapping
· Coherent and spectral combination
· Frequency doubling
· LIDAR or sensing
· Test and measurement
· Other scientific research
