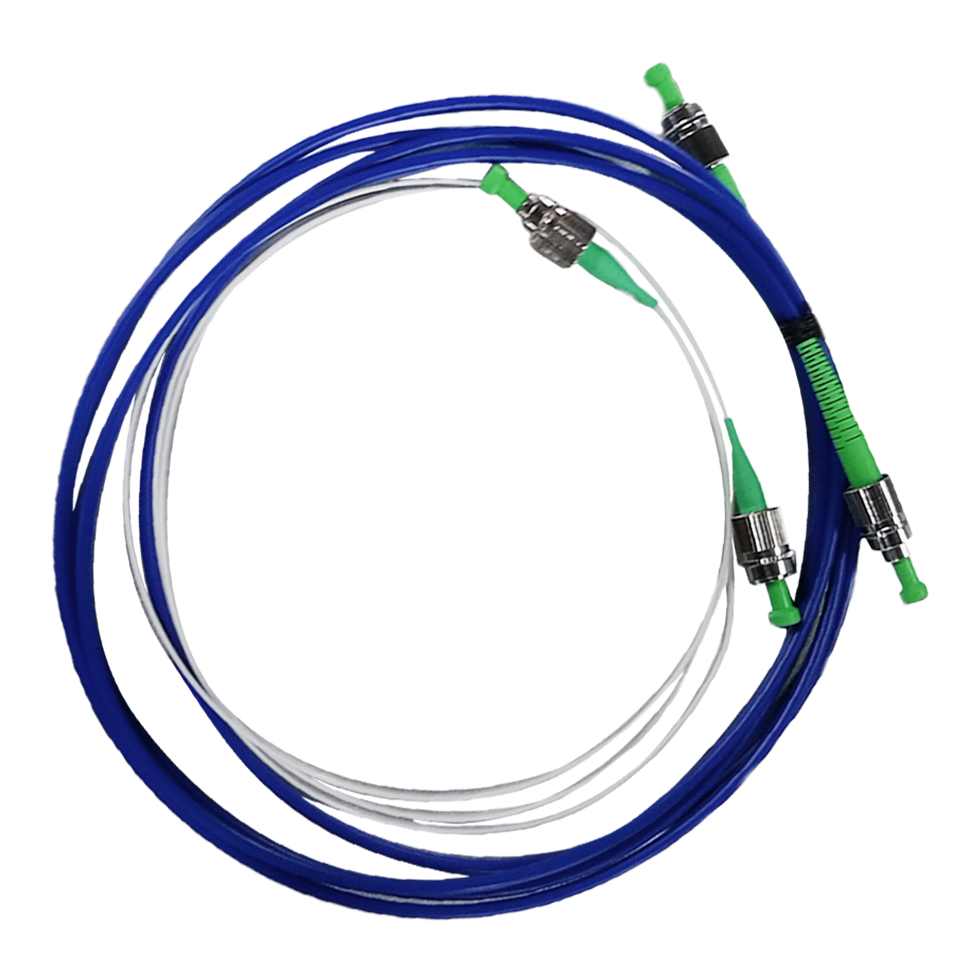

PMJ-D Series Short-wavelength Polarization Maintaining Fiber Patchcords

Connet PMJ-D series short wavelength polarization maintaining fiber patchcords are specially designed for short wavelength applications, ranging from 350nm to 900nm. The typical working wavelength is 399nm, 405nm, 509nm, 532nm, 638nm and 780nm.


Connet PMJ-D series short wavelength polarization maintaining fiber Patchcords adopt PANDA type polarization maintaining fiber and the slow Axis alignment, along with high-precision FC fiber connectors and ceramic ferrules for high quality.

Connet uses each of the most demanding processes to carefully craft each polarization-maintaining fiber patchcords to ensure high return loss and high polarization extinction ratio(PER), concentricity deviation, control of shaft angle deviation and strict reliability experiments make these polarization-maintaining fiber patchcords meet the industry's highest quality standards.



Connet PMJ-D series short wavelength polarization maintaining fiber patchcords use Narrow Key (2.0mm) FC fiber optic connectors with multiple connection options, including FC / UPC, FC / APC, and hybrid FC / UPC to FC / APC patchcords. For fiber to free space applications, AR-coated patchcords are also available.


Specifications:

Parameter

Unit

Specification

Part no.



PMJ-D-350

PMJ-D-405

PMJ-D-488

PMJ-D-630

PMJ-D-780

Fiber type



PM-S350-HP

PM-S405-HP

PM460-HP

PM630-HP

PM780-HP

Operating wavelength

nm

350-460

400-680

460-700

620-850

770-1100

Core diameter

um

3.0

3.0

3.0

3.5

4.5

MFD

um

2.3 @ 350 nm

3.3±0.5 @ 405 nm

3.3±0.5 @ 515 nm

4.5±0.5 @ 630 nm

5.3±1.0 @ 850 nm

Core NA

NA

0.12

0.12

0.12

0.12

0.12

Cut-off wavelength

nm

315 ±25

380 ±20

410 ± 40

570 ± 50

710 ± 60

Core attenuation

dB/km

/

30.0 @488 nm

100.0@ 488 nm

15.0 @630 nm

4.0 @ 850 nm

Beat length

mm

1.5 @350 nm

2.0 @ 405 nm

1.3 @ 460 nm

1.8 @ 630 nm

2.4 @ 850 nm

Return loss(FC/UPC)

dB

>55

>55

>55

>55

>55

Return loss(FC/APC)

dB

>65

>65

>65

>65

>65

Insertion loss

dB

<1.0

<1.0

<1.0

<1.0

<0.8

Polarization extinction ratio (PER)

dB

>20

>20

>20

>20

>20

Connector type



FC/UPC, FC/APC

Connector key



Narrow key 2.0±0.02μm

Key alignment type



Narrow key aligned to slow axis

Jacket

mm

0.9,2.0,3.0

Fiber length

m

1,2,3,5,10

Tolerance

cm

1~10

Operating temperature

-20~+70

Storage temperature

-40~+85




Ordering information:

· PMJ-D-405-FA/FA-09-050: PMJ-D series 405nm polarization maintaining fiber patchcords; 5m length ,0.9mm jacket, FC/APC-FC/APC

· PMJ-D-488-FA/FA-09-050: PMJ-D series 488nm polarization maintaining fiber patchcords; 5m length ,0.9mm jacket, FC/APC-FC/APC

· PMJ-D-630-FU/FU-30-005: PMJ-D series 630nm polarization maintaining fiber patchcords; 0.5m length, 3.0mm jacket, FC/UPC-FC/UPC

· PMJ-D-780-FA/FA-20-100-A: PMJ-D series 780nm polarization maintaining fiber patchcords; 10m length, 2.0mm jacket, Armored FC/APC-FC/APC


Features:

· Narrow key FC connector
· High PER
· High return loss
· Low insertion loss
· PANDA PMF

Applications:

· Laser to PMF coupling
· Fiber Optic sensing
· Coherent communication
· Component pigtails
· Other scientific research
