CoLID-I 1064nm Short Pulse Fiber Laser for LiDAR

The CoLID series 1064nm pulsed fiber laser of Connet is a laser source delivering high peak power and high pulse energy. Using MOPA configuration and all-fiber optimized design, the laser can offer the high peak power and the near diffraction-limit quality output beam.

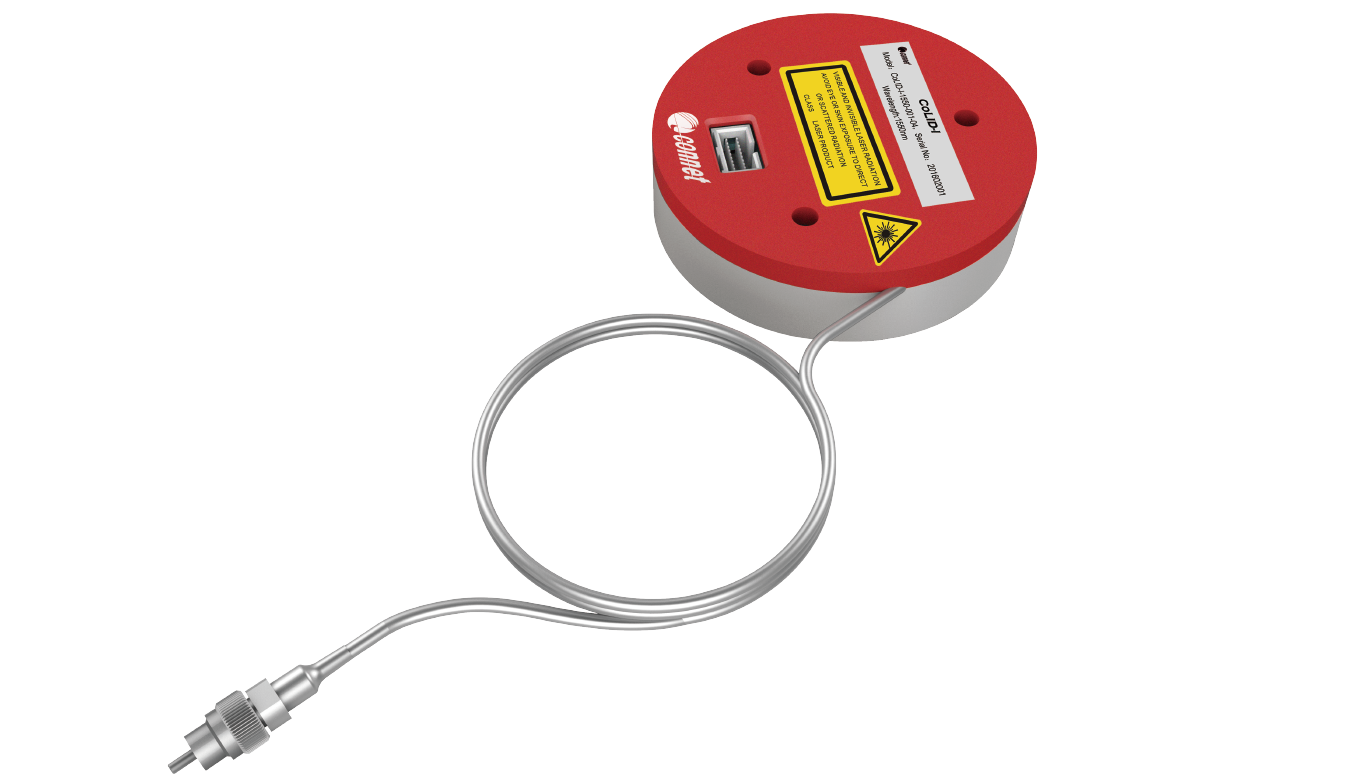

Connet CoLID series 1064nm pulsed fiber laser (CoLID-I-1064) employs the mini disc type module package in compact and rugged design, integrated with the internal trigger and the output monitor for synchronization. The external trigger mode is also available for use. It is easily deployed and maintenance-free, ensuring a long-life and cost-effective operations. The pulse width and the repetition rate of the laser can be adjusted by connecting to the computer. It is quite suitable for system integration.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



CoLID-I-1064

Center wavelength

nm

1059

1064

1069

Pulse energy

μJ

-

-

50

Peak power

kW

-

-

10

Average power

W

-

-

2

Pulse width

ns

1

-

50

Repetition rate

kHz

30

-

500

Beam quality

M2

<1.1

Polarization



Random

Output power stability1 (8hrs)

%

-

±2

±3

Output isolator



No

Operating temperature

-35

-

+65

Storage temperature

-40

-

+85

Power consumption2

W

-

-

24

Operating voltage

VDC

12

Trigger mode



Internal or External TTL Trigger

Output fiber length

m

>0.3

Optical connector



FC/APC or Collimator

Weight

g

<300

Dimension

mm

90x23.5 (DxH)


Specifications:

· The output power stability is measured under 25℃ after 30 minutes' warm-up.

· Power consumption is related to output power and operating conditions.


Ordering Information:

· CoLID-I-1064-XX-YY-ZZ-FA

· XX: Pulse width in ns

· YY: Repetition rate in kHz

· ZZ: Peak power in kW

· FA: FC/APC connector, Collimator (Col) is optional.

· Example: CoLID-I-1064-02-200-04-FA

CoLID-I 1064nm Short Pulse Fiber Laser, 2ns pulse width, 200kHz repetition rate, 4kW peak power, FC/APC connector

Features:

· High peak power: up to 10kW

· Average power: up to 2W

· Repetition rate adjustable: 30-500kHz

· Pulse energy: up to 50uJ

· Excellent beam quality

Applications:

· LiDAR

· Range finding

· Target detection

· 3D scanning

· Telemetry
