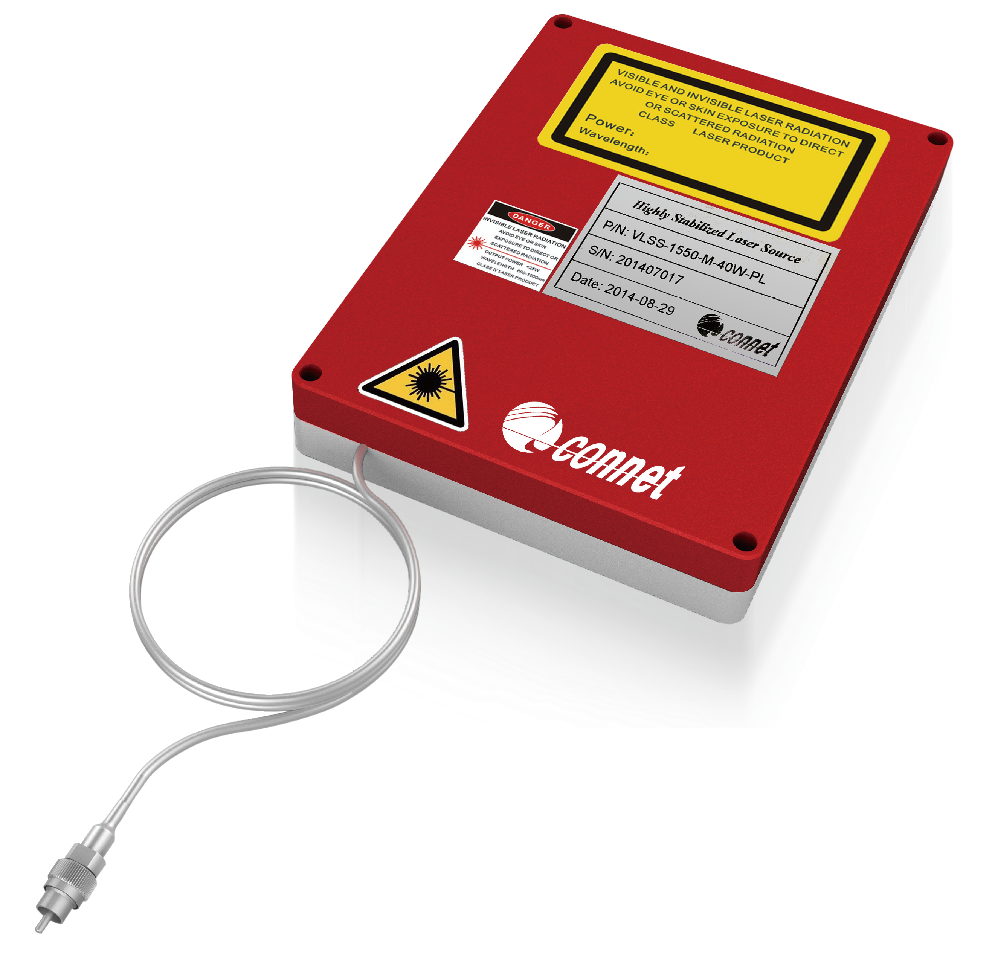

CoSF-D-YB-M Single Frequency Fiber Laser Module
Connet CoSF-D is a low-noise Single Frequency Fiber Laser based on Distributed Feedback Bragg Grating (DFB) technology. It has independent intellectual property rights and achieves a stable single-frequency laser output with single longitudinal mode, linear polarization, and narrow linewidth. CoSF-D has low phase and frequency noise and low relative intensity noise (RIN). Connet uses unique packaging technology to ensure low-noise DFB single frequency fiber lasers with excellent wavelength stability.
Connet uses extra-cavity technology to significantly suppress the relative intensity noise (RIN) of the DFB single frequency fiber laser, ensuring that the resonant cavity of the single frequency fiber laser is not disturbed. Please refer to CoSF-D-RS series products.
CoSF-D narrow linewidth single frequency fiber laser module has a small size, a sturdy package, strong resistance to environmental interference, and an output power of more than 100mW. CoSF-D-YB-M is based on Yetterbium-doped fiber with narrow linewidth (<20kHz) and low phase noise, low relative intensity noise (RIN). The standard wavelength is 1064nm, 1053nm, 1083nm, and the optional wavelength range is 1010-1120nm. Other wavelengths can be customized according to requirements.
Specifications：
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
CoSF-D-YB-M |
||
|
Center wavelength |
nm |
1010-1120nm fixed, other specify |
||
|
Output power |
mW |
20 |
50 |
100 |
|
Laser output |
|
CW, Single frequency & Single longitudinal mode |
||
|
Beam quality |
M2 |
- |
1.05 |
1.1 |
|
Linewidth |
kHz |
- |
10 |
20 |
|
RIN peak frequency |
kHz |
800 |
1000 |
2000 |
|
RIN peak |
dBc/Hz |
- |
-105 |
- |
|
RIN @10MHz |
dBc/Hz |
- |
-140 |
- |
|
SMSR (20pm resolution) |
dB |
50 |
60 |
- |
|
Output polarization |
|
Linear |
||
|
Polarization extinction ratio (PER) |
dB |
20 |
23 |
- |
|
Output power stability |
% |
- |
- |
±1 |
|
Output isolation |
dB |
35 |
45 |
- |
|
Wavelength thermal tuning |
nm |
- |
0.6 |
0.9 |
|
PZT wavelength modulation |
|
Optional |
||
|
Modulation frequency (linear) |
kHz |
DC |
10 |
20 |
|
Modulation wavelength range1 |
GHz |
- |
10 |
15 |
|
Operating temperature |
℃ |
-20 |
- |
+50 |
|
Storage temperature |
℃ |
-40 |
- |
+85 |
|
Power supply |
VDC |
12 |
||
|
Communication interface |
|
RS485 |
||
|
Output fiber type |
|
Panda PM980 |
||
|
Output fiber length |
m |
> 0.5 |
||
|
Optical connector |
|
FC/APC |
||
|
Dimension |
mm |
145x100x25 |
||
|
Weight |
kg |
<0.5 |
||
Ordering Information:
CoSF-D-YB-M-<-10xx-<PW>-PMF/SMF-PZT-FA
PW: Output power, 20mW is fixed, 50mW and 100mW output power are adjustable
SMF output is upon request, PZT fast modulation is on option. Monitoring output is upon request.
Features:
· Narrow linewidth <20kHz, typically <10kHz
· Low phase noise and frequency noise
· Low relative intensity noise (RIN)
· Stable single frequency, single polarization output
· No mode-hopping
· Small sized package 145x100x25mm
· High reliability
Applications:
· Distributed optical fiber sensing
· Coherent LiDAR
· Laser spectroscopy
· Coherent communication
· Gas absorption measurement
· Cold atomic physics
· Other scientific research
