1550nm Long Pulse Single Frequency PM Fiber Laser (LP)
Connet CoLIS-LP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser specially designed for short-distance coherent Doppler wind lidar application. Based on eye-safe operating wavelength, this laser can achieve the single-mode linear polarization with the output single-pulse energy up to 10uJ.
CoLIS-LP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser internally integrates with Connet's proprietary single-frequency narrow linewidth seed laser source with the linewidth being narrow to 10kHz. The extinction ratio can be up to 100dB or more through the cascaded acousto-optic modulator (AOM) to produce a pulse signal with high turn-off ratio.
Connet CoLIS-LP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser adopts all PM fiber design and can achieve the high polarization extinction ratio (PER) output. The output end can be integrated with high power three-port optical circulator according to the application requirements.
Specifications:
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
CoLIS-1550-M-SF-LP |
||
|
Operating wavelength1 |
nm |
1545 |
1550 |
1565 |
|
Peak power2 (@200ns) |
W |
- |
- |
50 |
|
Pulse energy (@200ns, 20kHz) |
uJ |
- |
10 |
- |
|
Average power |
mW |
100 |
- |
200 |
|
Linewidth (Seed Laser) |
kHz |
1 |
10 |
15 |
|
Pulse width3 |
ns |
100 |
200 |
1000 |
|
Repetition rate 4 |
kHz |
5 |
10 |
100 |
|
Beam quality |
M2 |
- |
1.05 |
1.1 |
|
Pulse on-off ratio (ER Square Wave) |
dB |
90 |
100 |
- |
|
Frequency shift |
MHz |
- |
- |
80 |
|
Polarization Extinction Ratio (PER) |
dB |
20 |
23 |
- |
|
Output power stability (8hrs) |
% |
- |
±0.5 |
±1 |
|
Built-in circulator |
|
Optional |
||
|
Output isolation |
dB |
35 |
- |
- |
|
Power supply |
VDC |
12-24 |
||
|
Operating temperature |
℃ |
-20 |
- |
+50 |
|
Storage temperature |
℃ |
-40 |
- |
+85 |
|
Output fiber type |
|
PM1550-XP |
||
|
Output fiber length |
m |
>0.5 |
||
|
Optical connector |
|
FC/APC or other optional |
||
|
Output power of intrinsic light |
mW |
~1 |
||
|
Output fiber type of intrinsic light |
|
PM1550-XP |
||
|
Output connector of intrinsic light |
|
FC/APC |
||
|
Dimensions |
mm |

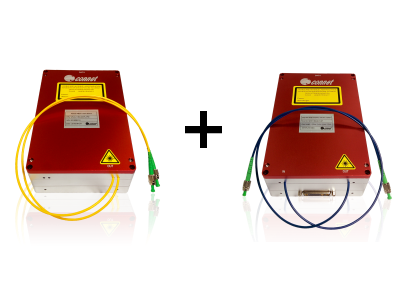

Seed Laser: 200x135x55 Amplifier: 200x135x41
|
||
Specifications:
· Other wavelength is optional.
· For higher output power, please contact Connet.
· Pulse width is optional. For wider pulse width, please contact Connet.
· Other repetition rate is optional.
Ordering Information:
· CoLIS-1550-M-SF-LP-XX-YY-ZZ-FA
· XX: Pulse width in ns
· YY: Repetition rate in kHz
· ZZ: Peak power in W
· Example: CoLIS-1550-M-SF-LP-200-10-50-FA
1550nm Long Pulse Single Frequency Polarization Maintaining Fiber Laser, 200ns pulse width,10kHz repetition rate, 50W peak power with FC/APC connectors
Features:
· Eye-safe Wavelength: 1550nm
· Single Pulse Energy: up to 10uJ
· Adjustable Repetition Rate: 5-100kHz
· Pulse Width: 100-1000ns
· Excellent Beam Quality: M2<1.1
· High Polarization Extinction Ratio (PER)
Applications:
· Coherent Doppler Wind LiDAR
· Environmental Monitoring
· Pollution Monitoring
· Other Scientific Research
