1.0um Single-mode CW Fiber Laser (0.2-20W)
The 1.0um single-mode CW fiber laser of Connet is a highly integrated continuous Yb-doped fiber laser system with high power output. These fiber lasers employ the integrated design of all-fiber structure and use double cladding fiber pumping technology to realize the high-performance output laser. The output power can be up to 20W and the near diffraction-limited beam quality can be achieved at the same time. The lasers can be widely used in the areas of scientific research, experimental teaching and device testing.

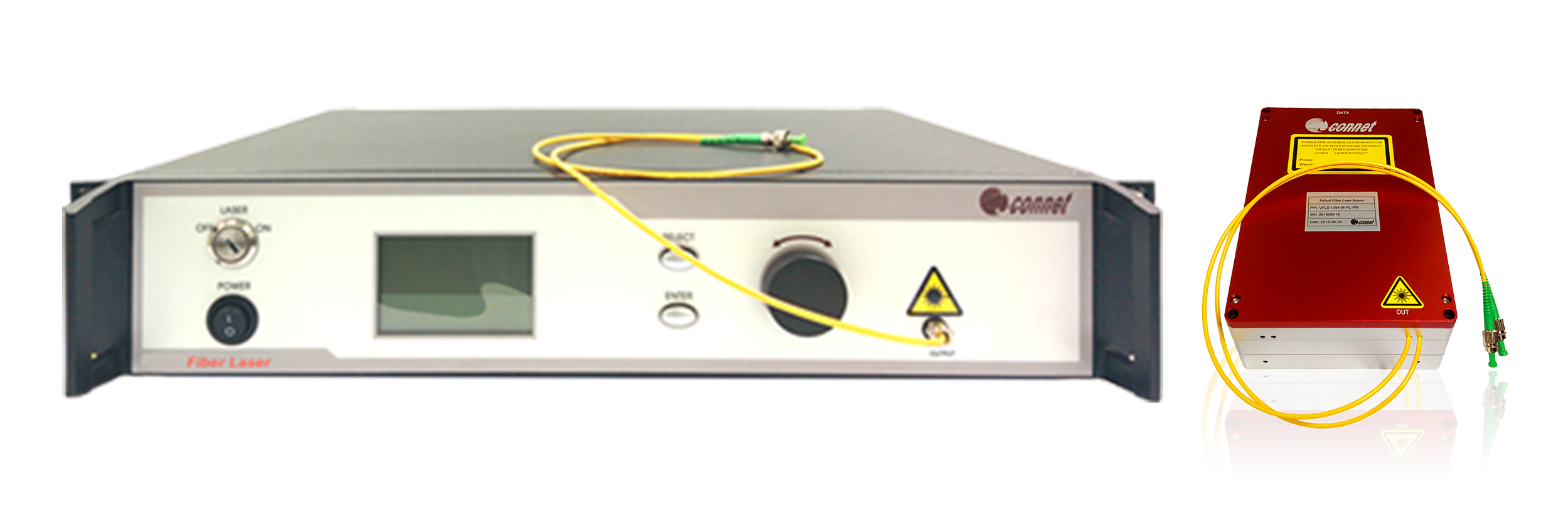

Connet 1.0um single-mode CW fiber laser employs the control system based on microprocessor which has stable property, long lifetime and free maintenance. With a clear interface and easy control, the LCD on the front panel of the benchtop system can give a real-time display of the operating state of the output power and temperature. The LCD can also offer the warning messages. Besides, the modular package is also available upon request for the convenience of system integration.
Specifications:
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
VFLS-1064-B/M-MP |
||
|
Center wavelength |
nm |
- |
1064 |
- |
|
Output power1 |
W |
0.2 |
- |
20 |
|
Output power adjustable range |
% |
10 |
- |
100 |
|
Spectral width (FWHM)2 |
nm |
- |
- |
1 |
|
Side-mode Suppression Ratio (SMSR) |
dB |
35 |
- |
- |
|
Beam quality |
M2 |
<1.2 |
||
|
Operation mode |
|
CW |
||
|
Polarization |
|
Random (Linear Polarization Optional) |
||
|
Output power stability (15mins)3 |
% |
- |
±0.5 |
±1.0 |
|
Output power stability (8hrs)3 |
% |
- |
±1 |
±2 |
|
Output isolation |
dB |
35 |
- |
- |
|
Return loss |
dB |
40 |
- |
- |
|
Operating temperature (Module) |
℃ |
-35 |
- |
65 |
|
Operating temperature (Benchtop) |
℃ |
0 |
- |
50 |
|
Storage temperature |
℃ |
-40 |
- |
85 |
|
Operating voltage (Module) |
VDC |
12 |
- |
24 |
|
Operating voltage (Benchtop) |
VAC |
100 |
- |
240 |
|
Output fiber type 4 |
|
LMA Fiber |
||
|
Output fiber length |
m |
> 1 |
||
|
Optical connector |
|
FC/APC or Collimator (other optional) |
||
|
Dimension |
mm |
200x135x60 (Module) 430x450x105 (Benchtop) |
||
Specifications:
· Output power is optional with the typical output power of 0.2W, 1W, 5W, 10W and 20W, etc.
· Spectral width on request.
· The output power stability is measured under 25℃ after 30 minutes' warm-up.
· Polarization-maintaining fiber is optional.
Ordering Information:
· VFLS-1064-<P>-MP-<PW>-<SP>
· P: Package, B-Benchtop, M-Module
· PW: Output power in W, 0.2-0.2W, 20-20W
· SP：Output isolation , 1-Yes，0-None
Features:
· High output power: up to 20W
· Excellent beam quality
· Highly stable and reliable performance
· Single-mode output, PM optional
Applications:
· Test and measurement
· Scientific research
· Spectroscopy analysis
· Other lab applications
