1532nm High Power CW Fiber Laser
Connet 1532nm high power CW fiber laser adopts all-fiber integrated design to achieve the high output power up to 30W with the narrow spectral width of <1nm and the near single-mode beam quality. Due to the applied microprocessor-based control systems, the 1532nm high power CW fiber lasers are stable and maintenance-free.

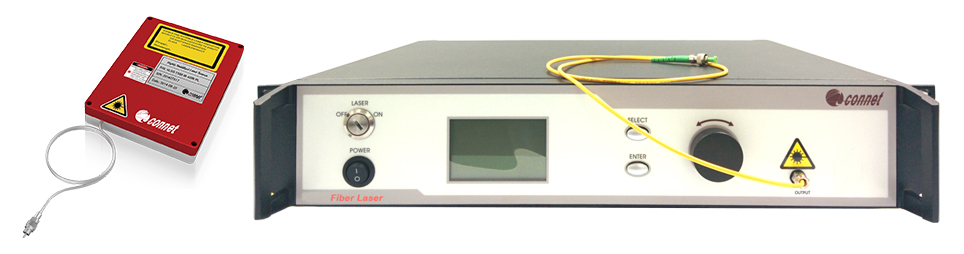

The benchtop system uses the LCD on the front panel to display the output power, the temperature and the other working status in real time. The LCD also can provide the alarm information in time. The interface is clear and easy to operate. For the convenience of system integration, the modular package is also available for option upon request.
Specifications:
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
VFLS-1532-B/M-HP |
||
|
Center wavelength |
nm |
- |
1532 |
- |
|
Output power1 |
W |
- |
30 |
- |
|
Output power adjustable range |
% |
10 |
- |
100 |
|
Spectral width2 (FWHM) |
nm |
- |
1 |
- |
|
Side-mode Suppression Ratio (SMSR) |
dB |
35 |
- |
- |
|
Beam quality |
M2 |
- |
- |
1.3 |
|
Operation mode |
|
CW |
||
|
Polarization |
|
Random (Linear Polarization Optional) |
||
|
Output power stability (15mins)3 |
% |
- |
±0.5 |
±1.0 |
|
Output power stability (8hrs)3 |
% |
- |
±1 |
±2 |
|
Return Loss |
dB |
40 |
- |
- |
|
Operating temperature (Module) |
℃ |
-30 |
- |
70 |
|
Operating temperature (Benchtop) |
℃ |
0 |
- |
30 |
|
Storage temperature |
℃ |
10 |
- |
50 |
|
Operating voltage (Module) |
VDC |
12 |
- |
24 |
|
Operating voltage (Benchtop) |
VAC |
100 |
- |
240 |
|
Output fiber type4 |
|
LMA Fiber |
||
|
Output fiber length |
m |
>1 |
||
|
Optical connector |
|
FC/APC (other options available) |
||
|
Dimension |
mm |
320(L)×200(W)×120(H) (Module) 510(L)X480(W)X150(H) (Benchtop) |
||
Specifications:
· Output power is optional with the typical output power of 1W and 30W.
· Spectral width on request.
· The output power stability is measured under 25℃ after 30 minutes' warm-up.
· Polarization-maintaining fiber is optional.
Ordering Information:
· VFLS-1532-<P>-HP-<PW>-<SP>
· P: B-Benchtop, M-Module
· PW: Output power in W, 1-1W, 30-30W
· SP：Output isolation , 1-Yes，0-None
Features:
· High output power
· Excellent beam quality
· High stability and reliable performance
· All-fiber structure
· Single-mode output, PM optional
Applications:
· LiDAR
· Remote sensing
· Test and measurement
· Pump source
· Other scientific research
