1.5um High Power Single Frequency Polarization Maintaining Fiber Amplifier

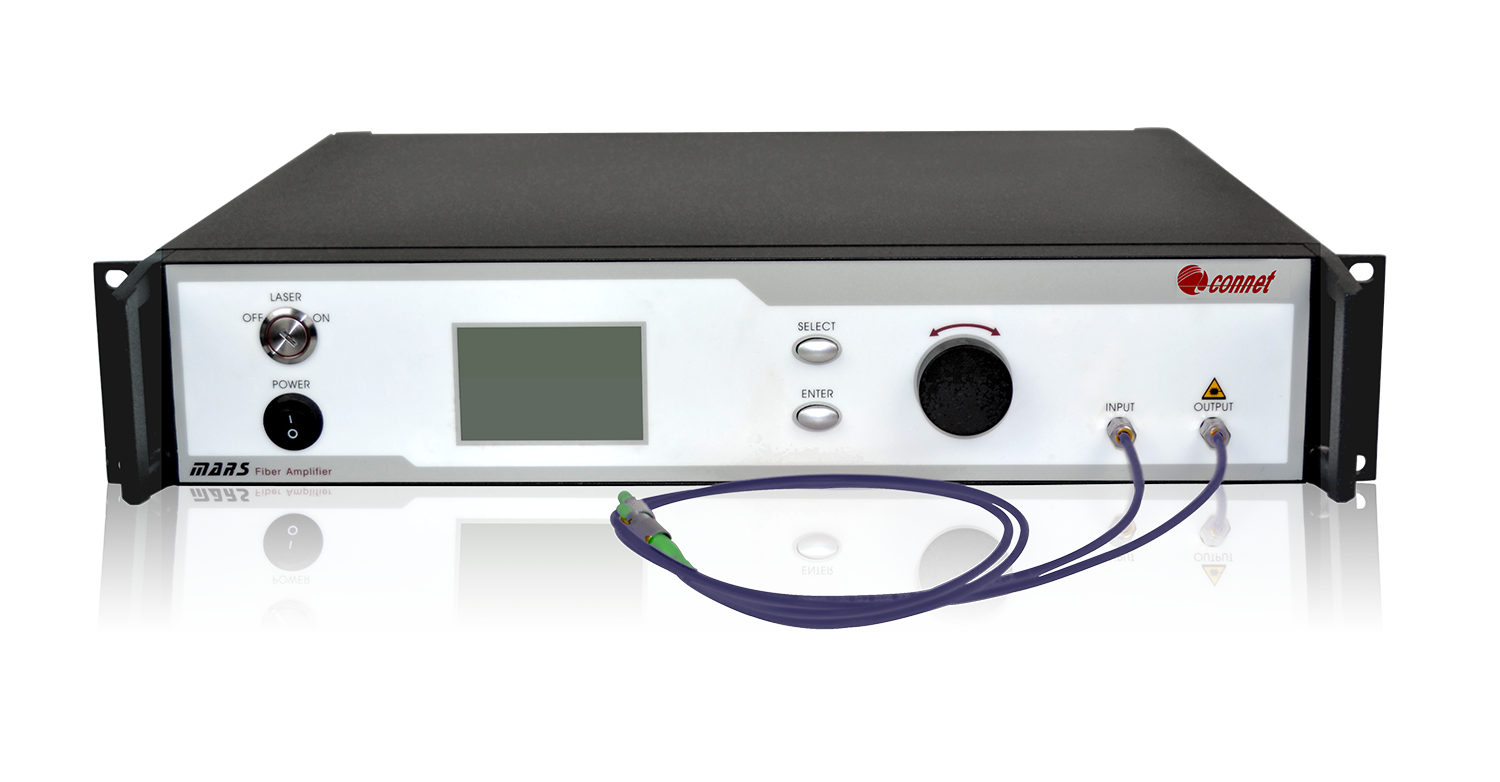

The MARS series high power single frequency polarization maintaining optical fiber amplifiers of Connet are designed specifically for the ultra-narrow linewidth single frequency laser source, such as single frequency External Cavity Lasers and fiber lasers based on the principle of DFB or DBR. This kind of amplifiers has the capability of boosting the low power optical signal at kHz magnitude up to 50W output power and meanwhile preserves the spectral property of the input signal. The MARS series amplifiers use high power high performance multi-mode pump internally, employ the technology of double cladding fiber amplification, and have the integrated design of all polarization-maintaining structure. The output power can be continuously tunable. MARS series fiber amplifiers are integral Turn-Key system with the microprocessor inside for controlling. The front panel is equipped with the switch to start the laser, the LCD to display the state of the power and the knob to adjust the output power.

Due to the extensive experience of handling the double cladding fiber, Connet conducts proper optimal design to the high power polarization maintaining fiber amplifiers, thus achieving high efficiency output while suppressing the nonlinear effects of the fiber. The unique thermal treatment technology guarantees that the benchtop fiber amplifier can operate stably for a long time. The high-speed response protection circuit monitor the power of input and signal automatically so that it can cut down the operation of the high power pump in case of the falling off of the input signal to ensure the safety of the whole system.



Connet MARS series high power benchtop polarization-maintaining fiber amplifiers can be widely used in scientific research, coherent beam combining, coherent detection sensing system, etc.


Specifications:

Parameter

Unit

Specification

Part no.



MFAP-EY-1-SF

MFAP-EY-5-SF

MFAP-EY-10-SF

MFAP-EY-20-SF

MFAP-EY-50-SF

Center wavelength1

nm

1540-1565

Output power2

W

1

5

10

20

50

Input power

mW

>1

Linewidth of seed

KHz

0.1~50

Operation mode



Continuous Wave

Polarization



Linear

Relative Intensity Noise (RIN)

dBc/Hz

<-100@<10MHz

Input isolation

dB

>30

Output isolation

dB

>30

Optical Signal Noise Ratio (OSNR)

dB

>50

>40

Output power tunable range

%

10~100

Polarization Extinction Ratio (PER)

dB

>20

>17

Output power stability3 (8hrs)

%

±1

±2

Beam quality

M2

TME00, M2<1.1

1.2

Input fiber type



PM1550-XP

Output fiber type



PM1550-XP

PLMA fiber

Output fiber length

m

>1

Optical connector



FC/APC or Collimator

Collimator

Power supply

VAC

100-240

Operation temperature

0~+35

Storage temperature

-40~+85

Cooling mode



Air-Cooled

Dimension



19”2U

19”3U


Specifications:

· 1. Typical operating wavelength: 1540nm, 1550nm

· 2. Typical output power: 1W, 5W, 10W, 20W

· 3. The output power stability is measured under 25℃after 30 minutes' warm-up.


Ordering information:

· MFAP-EY-15xx-B-PW-SF: PM

· 15xx: Operating wavelength in nm.

· B: Benchtop

· PW: Output power in W, e.g.: 0.5-0.5W, 1-1W, 10-10W

· SF: Single Frequency

Features:

· High output power: up to 50W

· Low noise figure

· Turn-Key system

· Total PM fiber structure, high PER

· High stability, high reliability

Applications:

· Coherent detection

· Coherent combining

· Quantum optics

· Optical heterodyning & coherent communication

· Laser-based metrology
