C-band PM Optical Fiber Amplifier
The MARS series C-band polarization maintaining fiber amplifiers of Connet adopt the integrated all-fiber structure design. The unique polarization control technology and the advanced polarization maintaining fiber splicing technology ensure that the amplifiers can obtain the high power and the high extinction ratio linear polarization output.

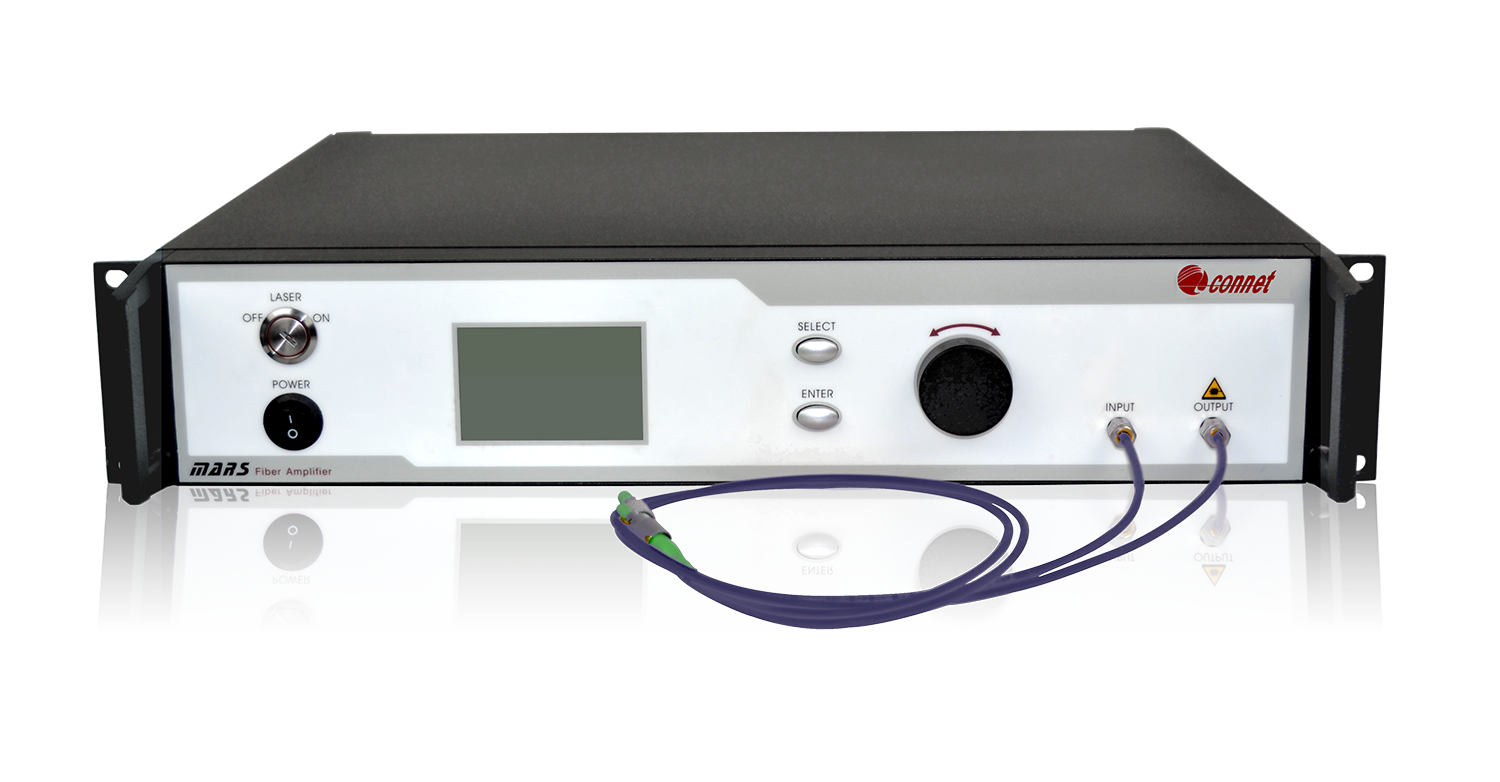

The MARS series polarization maintaining optical fiber amplifiers are the integral Turn-Key system with the microprocessor inside for controlling. With a clear interface and easy control, the LCD on the front panel can give a real-time display of the operating state of the pump current and temperature. The LCD can also offer the warning messages.
Specifications:
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
MFAP-ER-C |
||
|
Operating wavelength |
nm |
1528 |
1550 |
1560 |
|
Input power |
dBm |
-3 |
0 |
+10 |
|
Output power @0dBm Input power1 |
dBm |
10 |
- |
23 |
|
Noise figure @0dBm Input power |
dB |
- |
<5.5 |
- |
|
Polarization Extinction Ratio (PER) |
dB |
18 |
20 |
- |
|
Input/output Isolation |
dB |
30 |
- |
- |
|
Output power stability (8hrs)2 |
% |
|
±1 |
±2 |
|
Input power monitoring |
|
Yes |
||
|
Output power monitoring |
|
Yes |
||
|
Output power tunable |
|
Yes |
||
|
Polarization |
|
Linear Polarization |
||
|
Input/output fiber type (PM) |
|
PM1550 |
||
|
Input/output fiber length |
m |
>1 |
||
|
Optical connector |
|
FC/APC (other options available) |
||
|
Output power tunable range |
% |
10 |
- |
100 |
|
Operating temperature |
℃ |
0 |
- |
+50 |
|
Storage temperature |
℃ |
-40 |
- |
+85 |
|
Power supply (Benchtop) |
VAC |
100~240 |
||
|
Power consumption |
W |
- |
- |
20 |
|
Dimension3 |
|
19”2U |
||
Specifications:
· Output power is optional, the typical power is 50mW, 100mW, 200mW
· The output power stability is measured under 25℃ after 30 minutes' warm-up.
· Module package is available.
Ordering Information:
· MFAP-ER-C-<P>-<PW>: PM
· P: Package, B-Benchtop, M-Module
· PW: Output power in dBm, e.g.: 20-100mW, 23-200mW
Features:
· High output power
· Low noise figure
· High PER output
· High stability, high reliability
· LCD display interface, easy operation
Applications:
· Non-linearity research
· Free-space communication
· Fiber optic sensing
· Coherent combination
· Research & development
