C-Band Booster EDFA

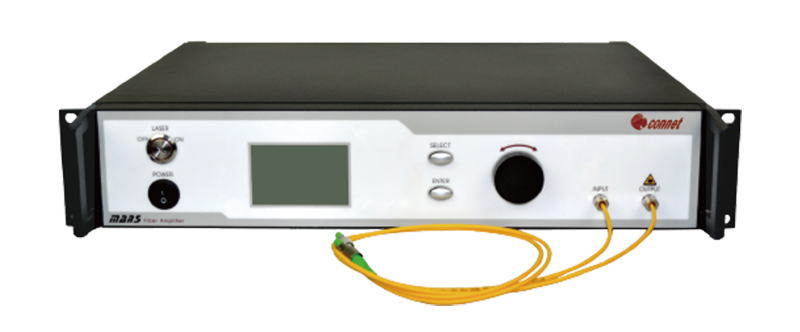

The MARS series C-band booster Er-doped fiber amplifiers of Connet are designed for amplifying the single-mode or the polarization-maintaining signal of the single wavelength optical transmission system. The maximum output power can be up to 23dBm.

Connet MARS series C-band booster Er-doped fiber amplifiers adopt the ACC or the APC control mode. The output power is continuously tunable and can be precisely controlled. The output power can be set per request via easy operation. The MARS series C-band booster Er-doped fiber amplifiers have two types of packages for option in benchtop and module. All systems can communicate with computer through the equipped RS232 interface.

Specifications:

Parameter	Unit	Specification
Parameter	Unit	Min	Typ.	Max
Part no.		MFAS-Er-C-BA
Operating wavelength	nm	1528	1550	1560
Input power	dBm	-5	-	10
Output power	dBm	-	20	23
Noise figure@0dBm input， 23dBm output	dB	-	-	5.5
Input/output isolation	dB	30	35	-
Output power tunable range	%	0	-	100
Output power tunable mode		Coarse/Fine
Power supply	V_AC	100-240
Power consumption	W	-	-	20
Operating temperature	℃	0	-	50
Storage temperature	℃	-40	-	85
Output fiber type (SM)		SMF 9/125um
Output fiber length	m	> 1
Optical connectors		FC/APC (other options available)
Dimension¹		19”2U

Specifications:

· Module package is available.

Ordering information:

· MFAS-Er-C-<P>-<PW>-BA

· P: Package, B-Benchtop, M-Module

· PW: Output power in dBm, e.g.: 20-100mW, 23-200mW

Features:

· High stability, high reliability

· Gain flattening

· Adjustable output power

· Compact structure

Applications:

· SDH/ATM

· Optical distribution system

· Video and Ethernet optical transmission system

· Power amplifying
