C-Band PreAmp EDFA

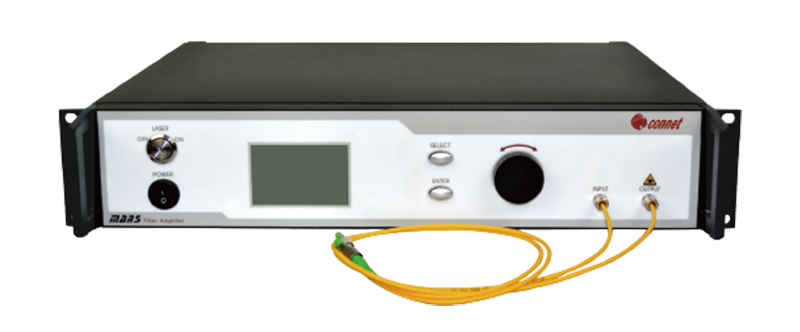

The MARS series C-band PreAmp Er-doped fiber amplifiers of Connet are the high-gain, low-noise fiber amplifiers (Pre-EDFA). This amplifier is used to pre-amplify the small signal, improve the receiver sensitivity and extend the transmission distance of the signal. This series of amplifiers employ the optimized Er-doped fiber optical path structure internally. The ASE is suppressed to an extreme level and the high-performance small signal amplification output can be achieved. The maximum gain can be up to 50dB at the small signal input of -40dBm.

Connet MARS series C- band Pre-Amp Er-doped fiber amplifiers (Pre-EDFA) have the built-in drive circuit and the logical control circuit to perform real-time monitor on the input/output optical power, the temperature of the pump laser and the module, and the signal gain. All the state parameters and the configuration information can be flexibly adjusted and monitored via the main control software on the upper computer. Both the benchtop and the module packages are available for option to meet the requirements of different applications.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



MFAS-ER-C-PA

Operating wavelength

nm

1528

1550

1560

Input power

dBm

-45

-

-10

Output power

dBm

-

10

-

Minimum gain

dB

30

-

-

Noise figure

dB

-

-

5

Input/output isolation

dB

30

35

-

Output power tunable range

%

0

-

100

Output power tunable mode



Coarse/Fine

Power consumption

W

-

-

5

Operating temperature

0

-

+50

Storage temperature

-40

-

+85

Input/output fiber type



SMF 9/125um NA=0.13

Input/output fiber length

m

> 1

Optical connector



FC/APC (other options available)

Power supply

VAC

100-240

Dimension



19”2U

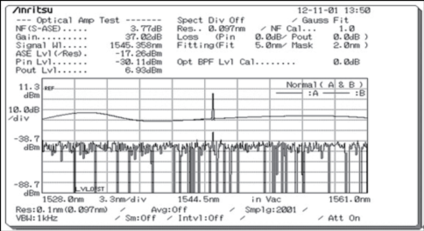

Spectrum:



Ordering Information:

· MFAS-ER-C-<P>-<PW>-PA

· P: Package, B-Benchtop, M-Module

· PW: Output power in dBm e.g.: 7-5mW, 10-10mW

Features:

· Low noise, high gain

· High stability, high reliability

· Gain flattened

· Tunable output power

Applications:

· Metro network

· Optical access network

· Fiber optic communication

· Scientific research
