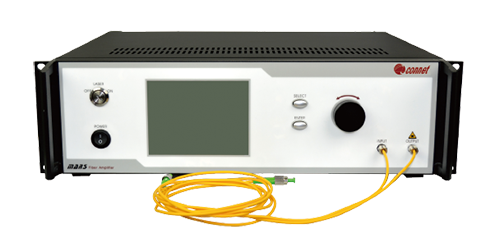

C-band High Power Optical Fiber Amplifier

The MARS series C-band high power optical fiber amplifiers of Connet employ the high-power, high-performance multi-mode pump source inside and adopt the double cladding fiber amplification technology in the integrated design of all-fiber structure. The output power can be 1~20W. The MARS series optical fiber amplifiers are the integral Turn-Key system with the microprocessor inside for controlling. With a clear interface and easy control, the LCD on the front panel can give a real-time display of the operating state of the pump current and temperature. The LCD can also offer the warning messages.

Due to the extensive experience in handling the double cladding fiber, Connet conducts the proper optimal optical structure design for the high power fiber amplifiers to achieve the high efficiency output. The unique thermal treatment technology guarantees that the optical fiber amplifier can be operated stably for a long time. The high-speed response protection circuit monitors the power of the input and the output signals automatically so that it can cut off the operation of the high power pump in case of the falling off of the input signal to ensure the safety of the whole system.


Specifications:

Parameter

Unit

Specification

Part no.



MFAS-EY-C-1

MFAS-EY-C-5

MFAS-EY-C-10

MFAS-EY-C-20

Operating wavelength

nm

1540~1565

Input power

mW

-3~+10

Output power @0dBm Input power1

W

1

5

10

20

Noise figure @0dBm Input power

dB

<5.5

Input/output isolation

dB

30

Output power stability (8hrs)2

%

±1

Input power monitoring



Yes

Output power monitoring



Yes

Output power tunable



Yes

Input fiber type



SMF 9/125um NA=0.13

Output fiber type



SM fiber or LMA fiber

Output fiber length

m

>1

Optical connector



FC/APC (other options available)

Output power tunable range

%

10~100

Operating temperature

0~+50

0~+30

Storage temperature

-40~+85

Power supply

VAC

100~240

Power consumption (Max)

W

100

Dimension3



19”2U

19”3U


Specifications:

· Output power is optional, the typical power is 1W, 5W, 10W, 20W

· The output power stability is measured under 25℃ after 30 minutes' warm-up.

· Module package is available.


Ordering Information:

· MFAS-EY-C-B-<PW>: SM

· MFAP-EY-C-B-<PW>: PM

· B: Benchtop

· PW: Output power in W, e.g.: 0.5-0.5W, 1-1W, 5-5W, 10-10W

Features:

· High output power

· Low noise

· High stability, high reliability

· LCD display interface

Applications:

· Non-linearity research

· High power amplifying

· Fiber optic sensing

· Optical fiber communication

· Research & development
