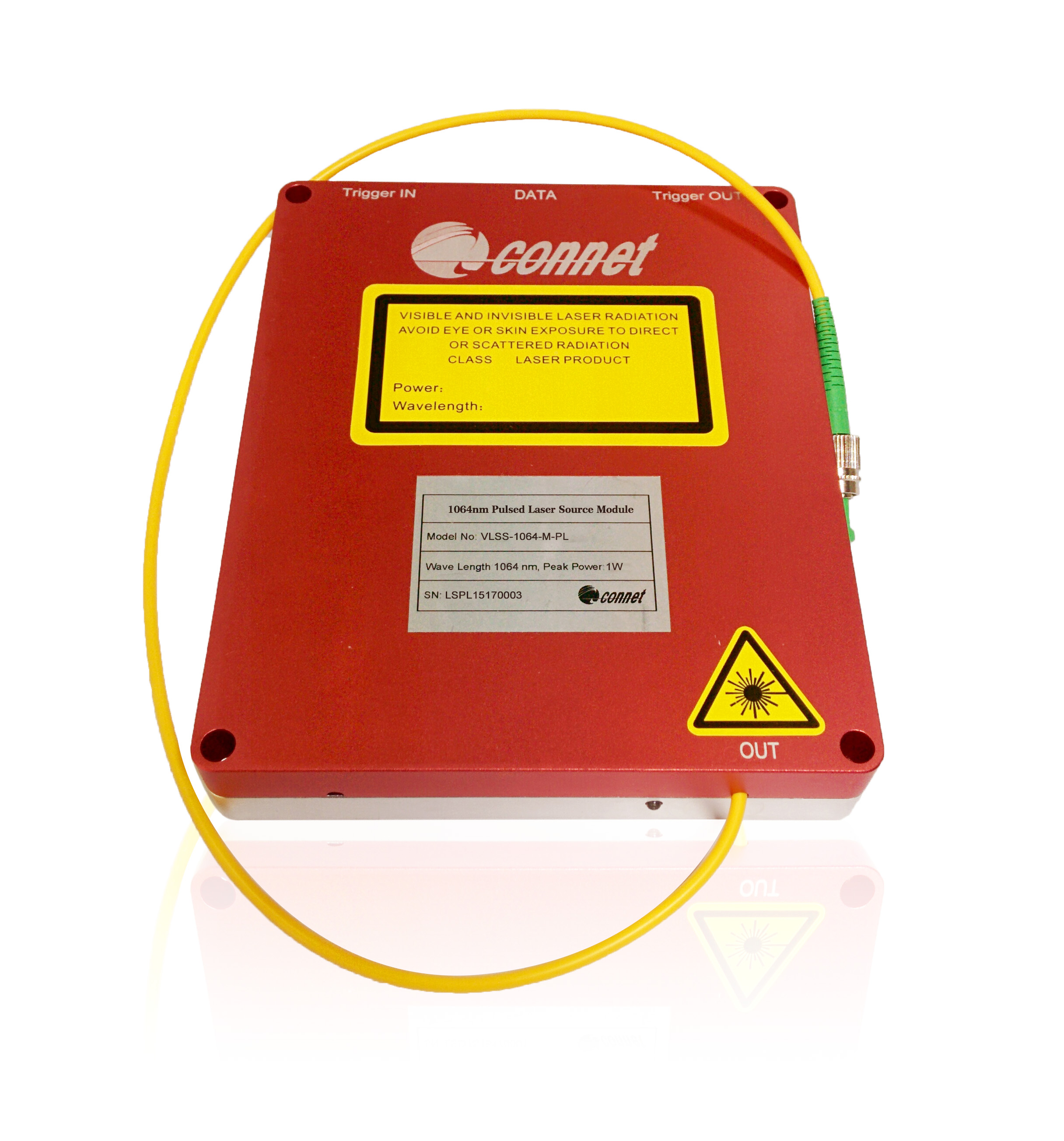

1064nm Picosecond Pulsed Fiber Laser
Connet 1064nm picosecond pulsed fiber laser adopts the all-fiber design and is an all polarization-maintaining fiber laser based on SESAM passive mode-locked technology. The stable linearly polarized picosecond laser output can be achieved through the optimized optical path, which is highly reliable and maintenance-free. This laser can be used for scientific research or as the seed laser for the high power industrial grade ultrafast pulsed fiber laser.
Specifications:
|
Parameter |
Unit |
Specification |
|||
|
Min |
Typ. |
Max |
|||
|
Part no. |
|
VFLP-1064-M-ps |
VFLP-1064-M-ps |
||
|
Center wavelength |
nm |
|
1064 |
|
|
|
Pulse width |
ps |
5 |
10 |
50 |
|
|
Repetition rate |
MHz |
20 |
|
60 |
|
|
Spectral width |
nm |
|
|
1 |
|
|
Output power |
mW |
>2 |
>100 |
||
|
Beam quality |
M2 |
<1.1 |
|||
|
Polarization |
|
Linear Polarization |
|||
|
Polarization Extinction Ratio (PER) |
dB |
20 |
- |
- |
|
|
Output power stability |
% |
- |
±1 |
±2 |
|
|
Pulse peak stability |
% |
- |
- |
5 |
|
|
Output isolation |
dB |
35 |
- |
- |
|
|
Operating temperature |
℃ |
+10 |
- |
+50 |
|
|
Storage temperature |
℃ |
-40 |
- |
+85 |
|
|
Supply voltage |
VDC |
5.5-12 |
|||
|
Output fiber type |
|
PM980-XP |
PM980-XP |
||
|
Output fiber length |
m |
> 0.5 |
|||
|
Output fiber connector |
|
FC/APC (other options available) |
|||
|
Dimension |
mm |
150(L)x125(W)x25(H) |
|||
Ordering Information:
· VFLP-1064-M-ps-FA: 1064nm Picosecond Mode-locking Fiber Laser (Seed Laser)
· VFLP-1064-M-ps-PA-FA: 1064nm Picosecond Mode-locking Fiber Laser (Seed Laser + Pre-amplifier)
· M: Module
Features:
• SAM passive mode-locked all PM fiber design
• Narrow spectral width<1nm
• Robust and compact
• 10~50ps pulse width, MHz repetition rate
• Low amplitude noise
• Maintenance-free operation
Applications:
• Seed laser for fiber laser or amplifier
