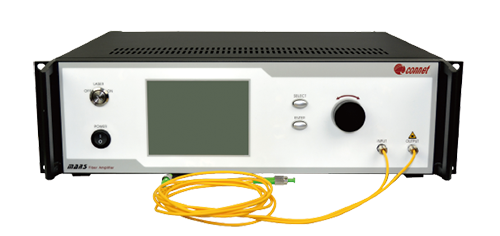

1.5um High Power Pulsed Fiber Amplifier

The MARS series 1.5um high power pulsed fiber amplifiers of Connet are eye-safe amplifiers. The optical path structure is optimized according to the short pulse signal amplification to efficiently suppress the generation of ASE. This series of amplifiers employ the high-power, high-performance multi-mode pump lasers inside. The proprietary technology and the peculiar devices guarantee the maximum optical-optical conversion efficiency and the minimum nonlinear effects during the process of amplification.

The unique thermal treatment technology guarantees that the amplifiers can be operated stably for a long time. The high-speed response protection circuit monitors the power of the input and the output signals automatically to ensure the safety of the whole system.



The MARS series high power pulsed fiber amplifiers include the single-mode and the polarization-maintaining outputs. Different types of packages are available for option such as benchtop, rack-mount and module. This series of amplifiers can be widely used in the areas of optical fiber communication, coherent combination and sensing, etc.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



MFAS-EY-C-PL:SM           MFAP-EY-C-PL:PM

Wavelength range

nm

1530

1550

1561

Average power

W

-

-

5

Peak power

kW

-

-

30

Pulse width

ns

1

-

250

Repetition rate

kHz

1

-

1000

Operation mode



Pulse

Output power tunable range

%

10

-

100

Polarization



Random or Linear Polarization



Polarization Extinction Ratio (PER)

dB

17

20

-

Output power stability (8hrs)1

%

-

±1

±2

Beam quality

M2

<1.2

Input isolation

dB

30

-

-

Output isolation

dB

30

-

-

Output fiber type (SM)



SM or LMA fiber

Output fiber type (PM)



PM Fiber

Length of the output fiber

m

>1

Optical connector



FC/APC (other options available)

Power supply

VAC

100-240

Power consumption

W

-

-

150

Operating temperature

0

-

+30

Storage temperature

-40

-

+85

Cooling mode



Air-cooling

Dimension



19”2U or 19”3U


Specifications:

· The output power stability is measured under 25℃ after 30 minutes' warm-up.


Ordering Information:

· MFAS-EY-C-<P>-PL:SM

· MFAP-EY-C-<P>-PL:PM

· C: Operating wavelength in nm, Example: 1550nm

· P: Package: B-Benchtop, R-Rack-mount, M-Module

Features:

· High output peak power: up to 30kW

· Short pulse amplification: 10ns/1MHz

· High stability, high reliability

· High optical-to-optical efficiency

· Output power tunable

· Customized versions available

Applications:

· Optical fiber communication

· Free space communication

· Atmosphere monitoring

· Environment monitoring

· Research & Development
