1480nm High Stability Single-mode Pump Laser Source

Connet VENUS series 1480nm single-mode pump laser source uses a high-quality multi-quantum semiconductor laser with a built-in isolator. The control system based on the advanced microprocessor, combined with high-precision ATC and ACC (APC) control circuits, realizes the high stable output of the laser, and at the same time ensures the fast and intuitive control of the laser source. Connet can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control.

Connet VENUS series 1480nm high stability single-mode pump laser source is a high performance pump laser source designed for high performance EDFA, Raman amplifier and other applications. Based on the built-in isolation protection, Connet provides other targeted pump protection solutions to further enhance the safety of the pump laser source.

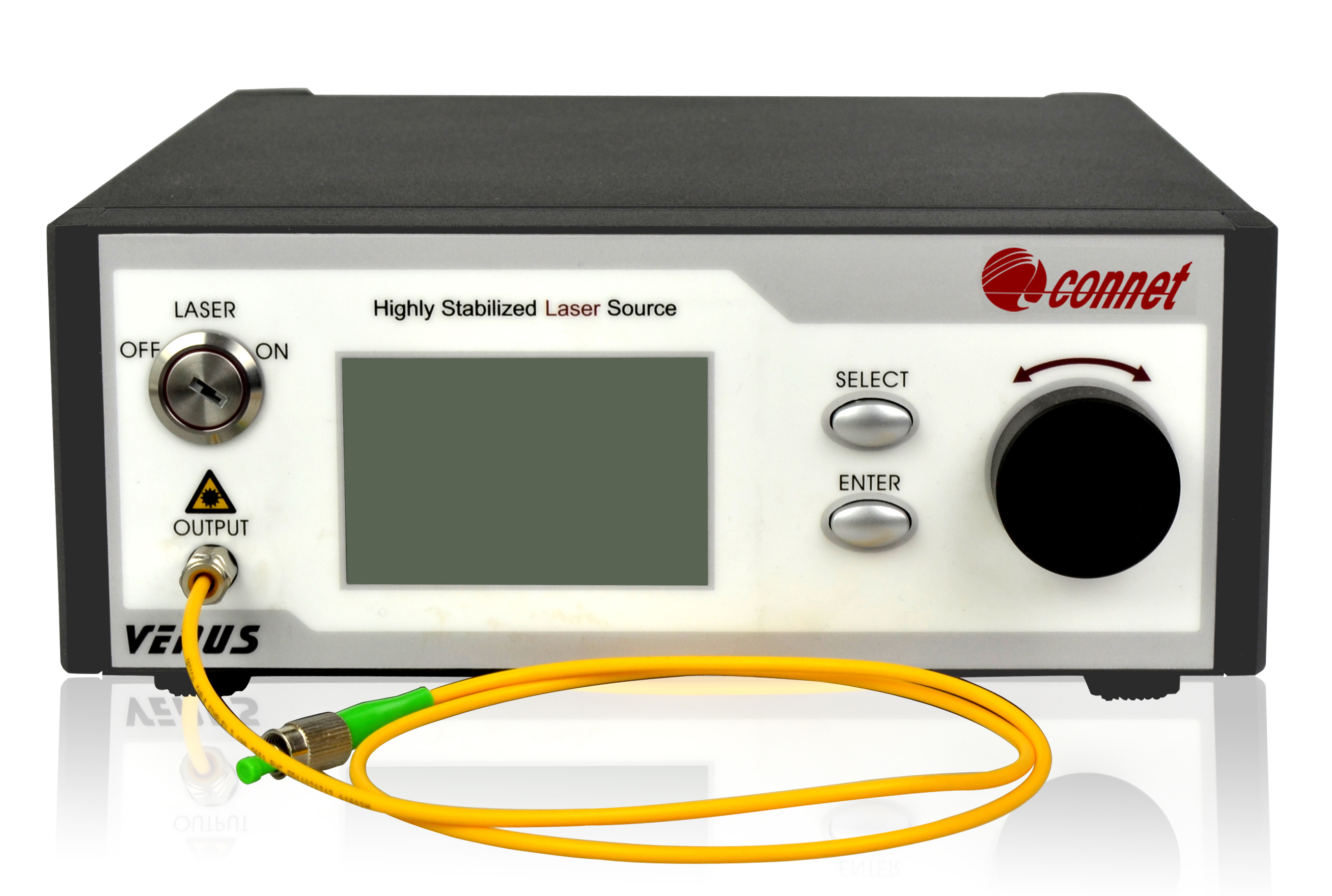

Connet VENUS series 1480nm high stability single-mode pump laser source is a highly integrated turn-key system laser source. It uses a high-definition LCD display with continuously adjustable output power and simultaneous display of current and voltage. In addition, the company can also provide modular packaging according to user requirements to facilitate system integration.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



VLSS-1480-B

Output power1

mW

100

-

800

Peak operating wavelength2

nm

1460

1480

1490

Spectral width(FWHM

nm

-

5

8

SMSR

dB

20

-

-

Output isolation3

dB

-

30

-

Stability of output power4

%

-

±0.5

±1

Output power tunable range

%

0

-

100

Output power tunable mode



Coarse / Fine

Output fiber type



SMF or PMF

Length of output fiber

m

> 1

Output fiber connector



FC/APC( other options available)

Operating voltage

VAC

100-240

Power consumption

W





10

Operating temperature

0

-

+50

Storage temperature

-40

-

+85

Dimension

mm

340(L)×240(W)×100(H)


Specifications:

· Output power on request, typical output power: 400mW, 600mW, etc.

· Operating center wavelength please specify.

· Isolation refers to the feedback of ASE.

· The output power stability is measured under 25℃, 30 minutes after warm-up.



Ordering information:

· VLSS-1480-P-<PW>-<SP

· P: Package, B- Benchtop , M-module

· PW: Output power in mW, 300-300mW, 500-500mW;

· SP: Feedback protection, 0-None, 1-Yes

Features:

· Single mode high power output, up to 800mW

. Built-in isolation protection optional

· Stable output power, continuously adjustable

· Work status displayed  with LCD

· High precision ACC and ATC control circuit

Applications:

· C-Band high power EDFA

· L-Band high power EDFA

· Raman amplifier

· Test and measurement

· Other laboratory applications
