980nm High Stability Single-mode Pump Laser Source

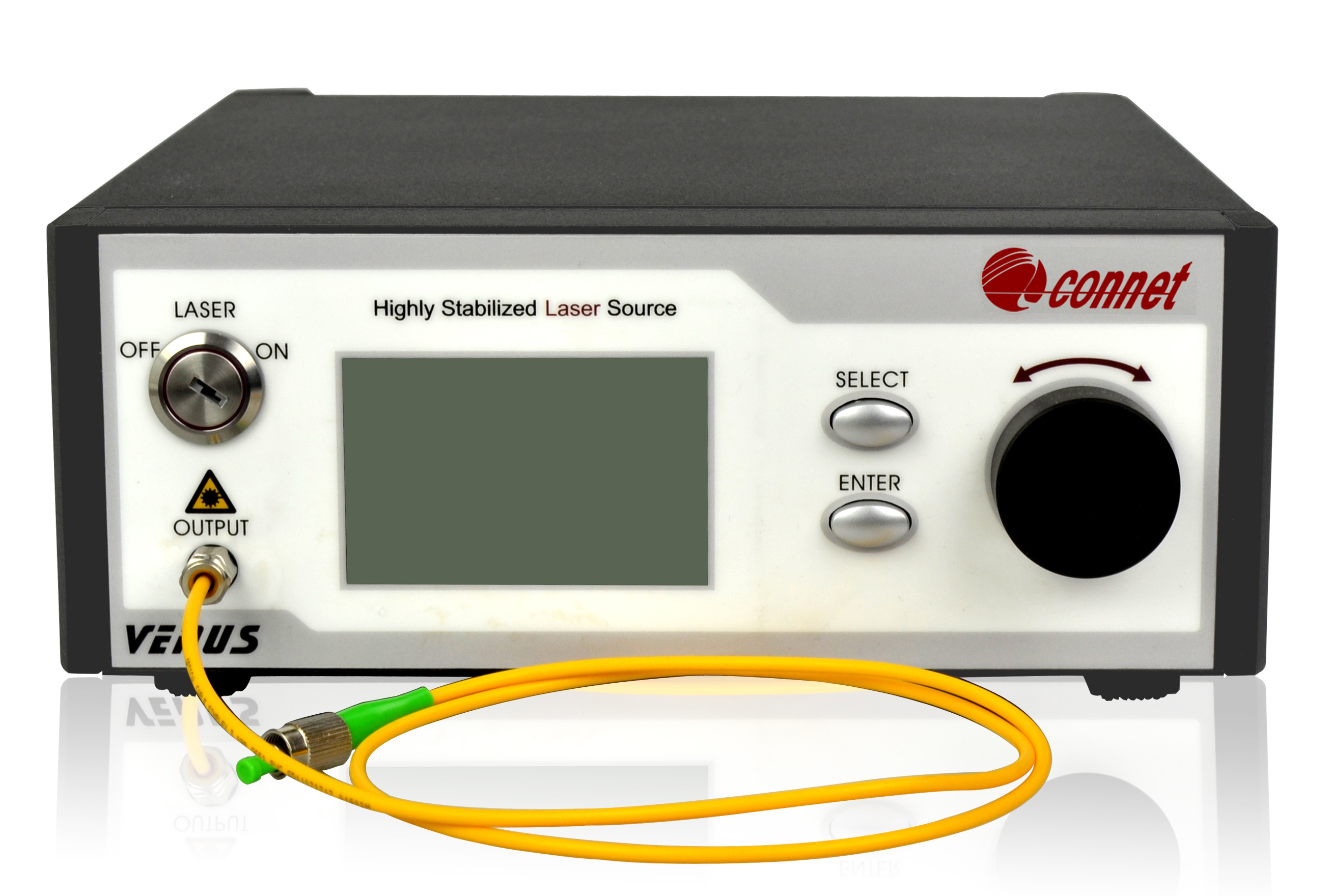

The key components of the Connet VENUS series 980nm high-stability desktop single-mode pump laser source use one or two high-power single-mode pump lasers with FBG wavelength stabilization in the 980nm band. The typical operating wavelength is around 975nm. The stability of the output power is guaranteed by a combination of uniquely designed ATC and APC circuits, structural and thermal design. The newly designed front panel operator interface is simple and elegant, and the operation is very simple. Connet can also provide RS232 communication interface and corresponding control software according to user’s requirements.
Connet VENUS series 980nm high-stability desktop single-mode pump laser source has adjustable output power. The output power is displayed on a high-definition LCD display. It is easy to operate, with high control precision. The output is a high quality singlemode or PM fiber with FC/APC connector. VENUS is plug and play, is ideal for applications in experimental research such as fiber amplifier pumping.
Connet VLSS-980-B series 980nm high stability desktop single-mode pump laser source is usually used in EDFA, EYDFA or Yetterbium-doped fiber amplifier pumping, etc. Due to the active ASE and other back-reflected light, it is very easy to lead to a failure. In order to reduce the risk of pump laser damage, Connet provides a targeted pump protection solution for users to choose.
Specifications:
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
VLSS-980-B |
||
|
Output power1 |
mW |
90 |
- |
1400 |
|
Peak operating wavelength2 |
nm |
970 |
974/976 |
985 |
|
Spectral width(FWHM） |
nm |
- |
0.5 |
1 |
|
SMSR |
dB |
20 |
- |
- |
|
Output isolation3 |
dB |
- |
30 |
- |
|
Stability of output power4 |
% |
- |
- |
1 |
|
Output power tunable range |
% |
0 |
- |
100 |
|
Output power tunable mode |
|
Coarse / Fine |
||
|
Output fiber type |
|
SMF or PMF |
||
|
Length of output fiber |
m |
> 1 |
||
|
Output fiber connector |
|
FC/APC( other options available) |
||
|
Operating voltage |
VAC |
100-240 |
||
|
Power consumption |
W |
|
|
10 |
|
Operating temperature |
℃ |
0 |
- |
+50 |
|
Storage temperature |
℃ |
-40 |
- |
+85 |
|
Dimension |
mm |
340(L)×240(W)×100(H) |
||
Specifications:
· Output power on request, typical output power: 400mW, 600mW, etc.
· Operating center wavelength please specify.
· Isolation refers to the feedback of ASE.
· The output power stability is measured under 25℃, 30 minutes after warm-up.
Ordering information:
· VLSS-974/976-P-<PW>-<SP>
· P: Package, B- Benchtop , M-module
· PW: Output power in mW, 300-300mW, 500-500mW; 1400-1400mW
· SP: Feedback protection, 0-None, 1-Yes
Notes:
Connet provides different pump protection solutions according to different wavelength fiber lasers and amplifiers.
If you need, please contact us for more professional support.
Features:
· Singlemode or PMF output
· High output power: up to 1400mW
· FBG wavelength-locked pump diode
· ASE feedback protection
· Highly stable output
Applications:
· High power and low noise EDFA
· Mode-locked fiber laser for 1.0um
and 1.5um band
· Test and measurement
· Other lab applications
