Connet VENUS series 808nm single-mode pump laser source uses a single-mode semiconductor laser with FBG wavelength-stabilized grating, which has stable wavelength and high output power. The control system based on the advanced microprocessor, combined with high-precision ATC and ACC (APC) control circuits, realizes the high stable output of the laser, and at the same time ensures the fast and intuitive control of the laser source. Connet can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control.

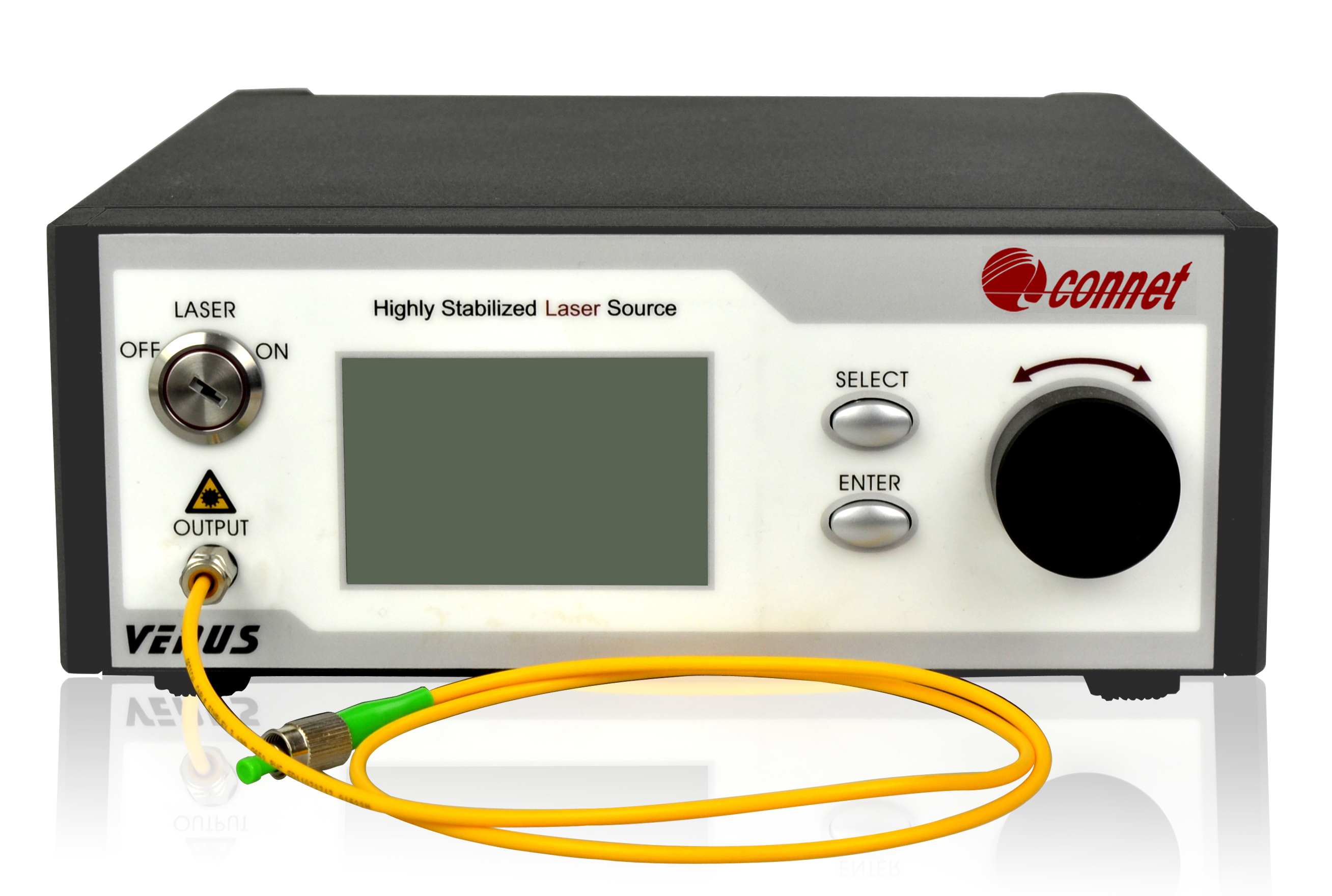

Connet VENUS series 808nm high stability single-mode pump laser source is a highly integrated turn-key system laser source. It uses a high-definition LCD display with continuously adjustable output power and simultaneous display of current and voltage. It is very suitable for experimental scientific research. In addition, the company can also provide modular packaging according to user requirements to facilitate system integration.
Specifications:
Parameter |
Unit |
Specification |
||
Min |
Typ. |
Max |
||
Part no. |
|
VLSS-808-B |
||
Output power1 |
mW |
100 |
- |
250 |
Peak operating wavelength |
nm |
803 |
808 |
813 |
Spectral width(FWHM) |
nm |
- |
0.5 |
|
SMSR |
dB |
20 |
- |
- |
Stability of output power2 |
% |
- |
±0.5 |
±1 |
Output power tunable range |
% |
0 |
- |
100 |
Output power tunable mode |
|
Coarse / Fine |
||
Output fiber type |
|
SMF or PMF |
||
Length of output fiber |
m |
> 1 |
||
Output fiber connector |
|
FC/APC( other options available) |
||
Operating voltage |
VAC |
100-240 |
||
Power consumption3 |
W |
|
|
10 |
Operating temperature |
℃ |
0 |
- |
+50 |
Storage temperature |
℃ |
-40 |
- |
+85 |
Dimension |
mm |
340(L)×240(W)×100(H) |
Specifications:
· Output power on request, typical output power: 100mW, 250mW, etc.
· The output power stability is measured under 25℃, 30 minutes after warm-up.
. The max power consumption refers to the consumption under extreme temperature conditions.
Ordering information:
· VLSS-808-P-<PW>
· P: Package, B- Benchtop , M-module
· PW: Output power in mW, 100-100mW, 250-250mW;
Features:
• FBG Wavelength-Stabilized , no drift
• High power, single mode output
• Continuously adjustable output power
• High stability and high reliability
• High precision ACC and ATC control circuit
Applications:
• Fiber laser pump source
• Solid-state laser pump source
• Fiber optic sensing
• Test and measurement
• Other scientific research
