980nm High Stability Multi-mode Pump Laser Source

The VENUS series  multi-mode pump laser source of Connet is designed for high power fiber laser and amplifier as the high-stability pump source. It has high power and high brightness output. One single emitter pump diode laser has been installed inside. The VENUS series multi-mode pump laser source of Connet adopts a built-in isolated diode laser, which is able to realize 30dB isolation of the backward ASE, thus avoiding the damage caused by ASE to pump diode laser. The typical operating wavelength is 980nm and others wavelength are available, such as  915nm and 940nm. Connet also can provide more high output power as requested.

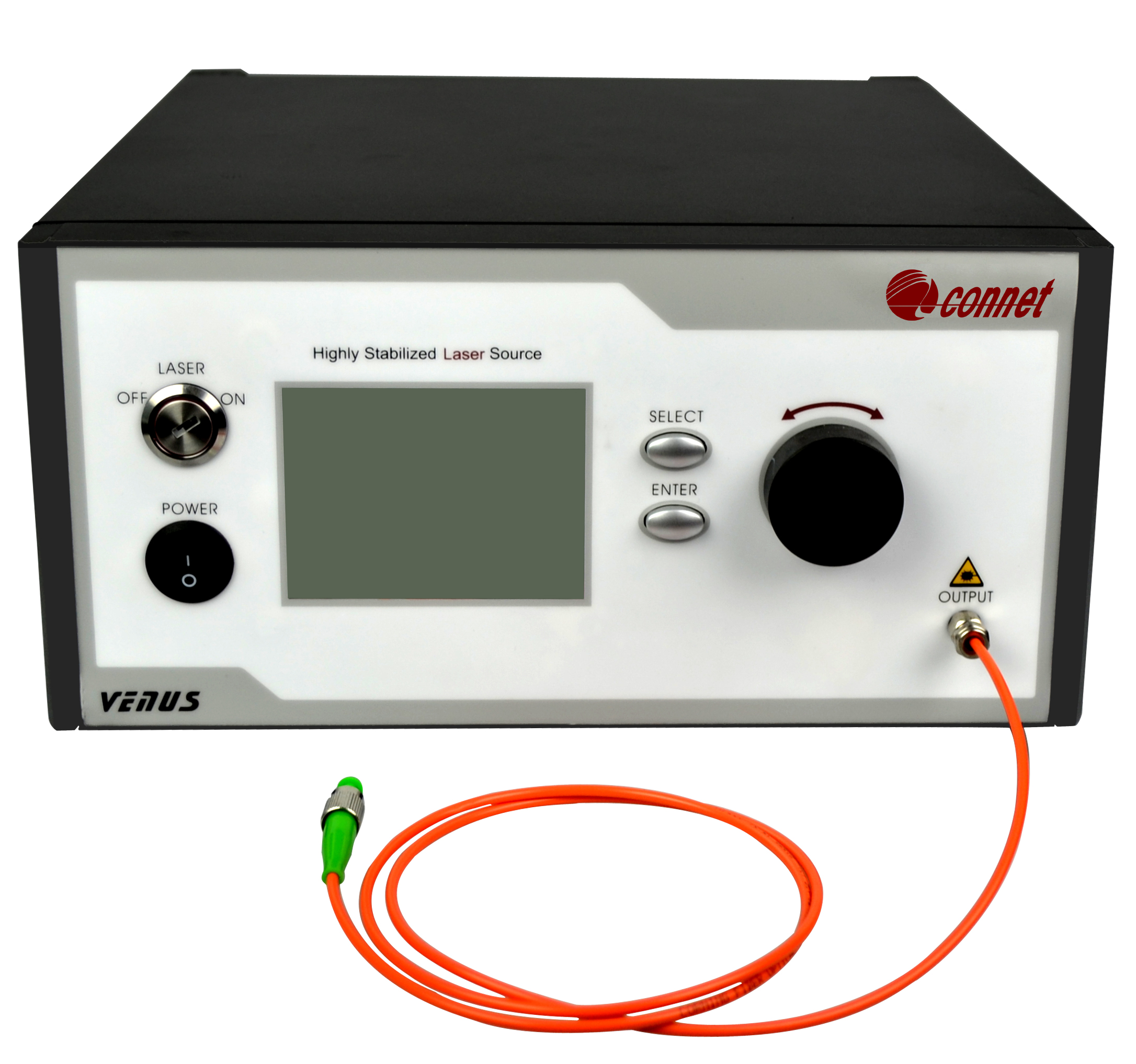

Connet VENUS series multi-mode pump laser source is a highly integrated system source. The benchtop source uses the high-definition LCD to display the current and voltage synchronously and also has the continuously adjustable output power which is suitable for scientific research and manufacture testing. In addition, Connet Laser can provide compact module package for system integration.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



VLSM-XXXX-B

Output power1

W

9

-

60

Operating wavelength2

nm

973

976

980

Spectral widthFWHM

nm

-

-

6

Output isolation3

dB

25

30

-

Output power stability (15mins)4

%

-

±0.1

±0.5

Output power stability (8h)4

%

-

±1.0

±2.0

Output power tunable range

%

0

-

100

Output power tunable mode



Coarse / Fine

Output fiber type



105/125 or 106.5/125 NA=0.15 or 0.22

Output fiber length

m

> 1

Optical connector



FC/APC (other options available)

Operating voltage

VAC

100-240

Power consumption5







150

Operating temperature



0



+30

Storage temperature



-40



+85

Dimensions

mm

320(L)×280(B)×150(H)


Specifications:

· Typical output power: 9W,20W,30W,60W.Higher output power is available;

· Others  operating wavelength is available : 915nm, 940nm;

· Isolation refers to the feedback of ASE@1040-1200nm;

· The output power stability is measured under 25℃, after 30 minutes' warm-up;

· The max power consumption is tested under the extreme temperature conditions.



Ordering information:

· VLSM-XXXX-P-PW-<SP>

. XXXX: Operating wavelength in nm;976nm, 915nm,940nm

· P: Package, B-Benchtop, M-Module

· PW: Output power in W; 9-9W, 25-25W

· SP: Feedback protection, 0-Non, 1-Yes

Features:

· High output power

· Wavelength-stabilized optional

· 1040-1200nm feedback protection

· High stability and high reliability

Applications:

· Pump for double-clad fiber laser & amplifier

· Spectral analysis

· Test and measurement

· Other lab applications
