808nm High Stability Multi-mode Pump Laser Source

The VENUS series 808nm multi-mode pump laser source of Connet has high power and high brightness output with a built-in Single Emitter laser. The control system based on the advanced microprocessor, combined with high-precision ATC and ACC (APC) control circuits, realizes the highly stable output of the laser, and at the same time ensures the fast and intuitive control of the laser source. Connet can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control.

Connet VENUS series 808nm multimode pump laser source uses Connet's unique AWL (Active Wavelength Locking) active wavelength locking technology to ensure that the peak wavelength is stabilized in the range of 808 +/- 3nm in the case  the power is reduced to half. It greatly improves the stability and efficiency of the laser source.

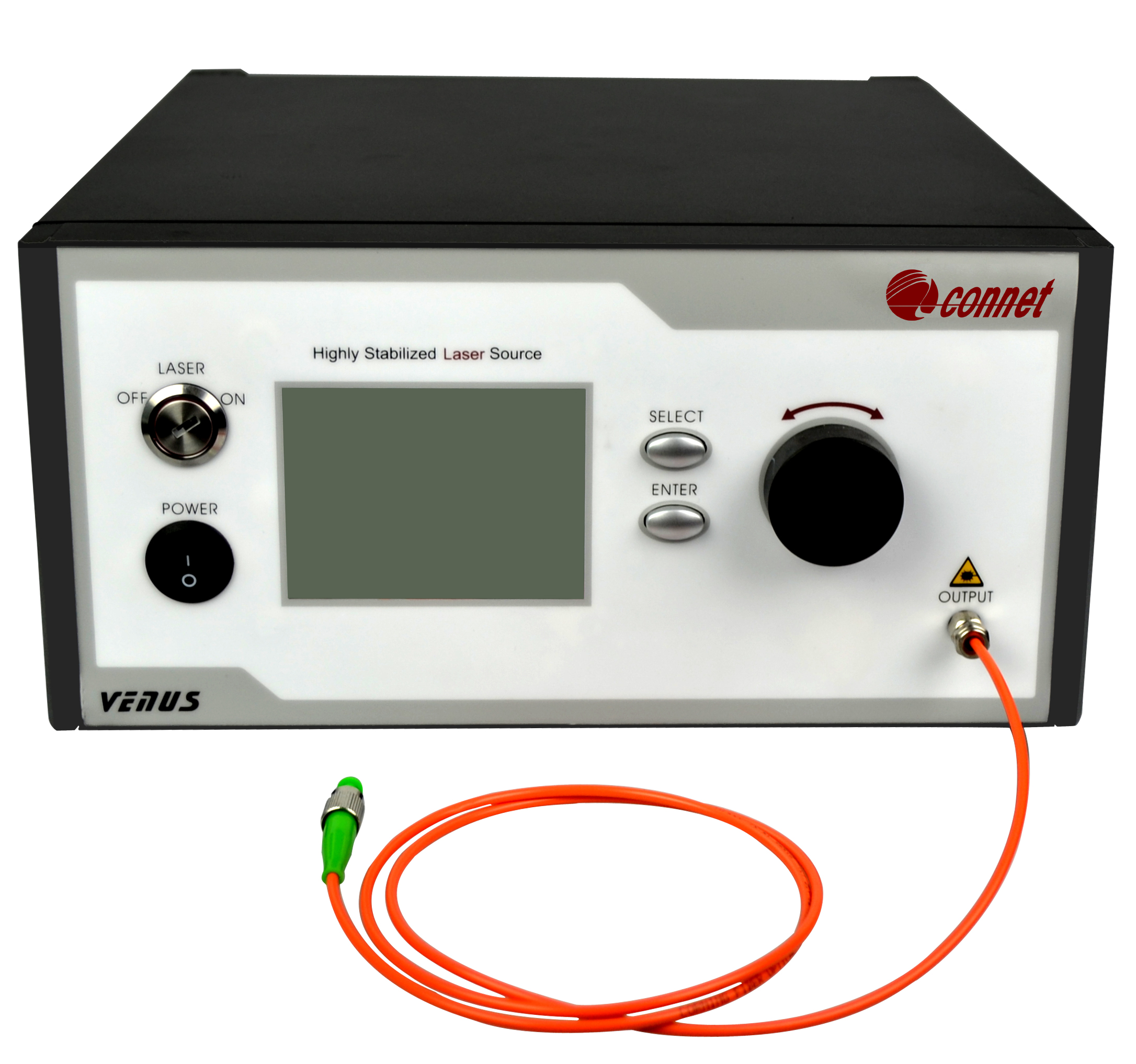

Connet  VENUS series 808nm multi-mode pump laser source is a highly integrated system source. The benchtop source uses the high-definition LCD to display the current and voltage synchronously and also has the continuously adjustable output power which is suitable for scientific research and manufacture testing. In addition, Connet Laser can provide compact module package for system integration.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



VLSM-808-B

Output power

W

1

-

50

Peak operating wavelength1

nm

805

808

811

Spectral widthFWHM

nm

-

5

-

Output power stability (15mins)2

%

-

±0.1

±0.5

Output power stability (8h)2

%

-

±1.0

±2.0

Output power tunable range

%

0

-

100

Output power tunable mode



Coarse / Fine

Operating voltage

VAC

100

220

240

Power consumption3

W

-

-

200

Operating temperature

0

-

30

Storage temperature

-40

-

85

Output fiber type



400μm/0.22

Output fiber length

m

> 1

Output fiber connector



FC/APC (other options available)

Dimension

mm

320(L)×280(B)×150(H)


Specifications:

· The peak operating wavelength can be specified;

· The output power stability is measured under 25℃, after 30 minutes' warm-up;

· The max power consumption is tested under the extreme temperature conditions.



Ordering information:

· VLSM-808-P-PW-<SP>

. P: Package, B-Benchtop, M-Module

· PW: Output power in W; 4-4W, 30-30W

Features:

· High output power

· Active wavelength locking

· High stability and high reliability

· LCD display

· High precision ACC and ATC control circuit

Applications:

· Neodymium-doped fiber pump source

· Solid-state laser pump source

· Spectral analysis

· Test and measurement

· Other lab applications
