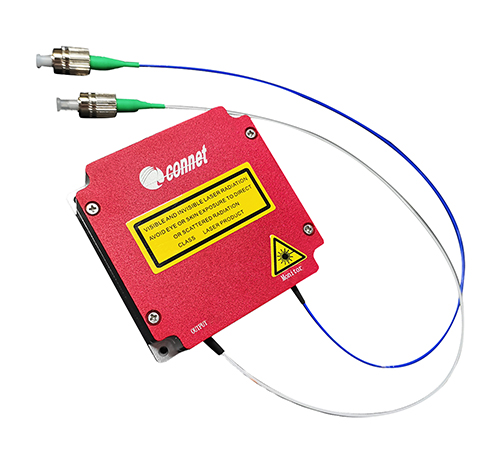

CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR
CoLID-Mini 1550nm short pulse fiber laser for LiDAR of Connet is a fiber laser source delivering high peak power and high pulse energy output based on safe wavelength for the human eyes. An optimized design with special configuration can achieve high peak power and ns-level pulse width laser output. It is an ideal light source for LiDAR, telemetry and range finding.
CoLID-Mini 1550nm short pulse fiber laser for LiDAR has a compact structure in small size (70x70x25mm) with wide operating temperature range, low delay jitter and power consumption. The pulse output can be achieved by external TTL trigger signal, which is very suitable for system integration.
Specifications:
|
Parameter |
Unit |
Specification |
||||
|
Min |
Typ. |
Max |
||||
|
Part no. |
|
CoLID-Mini-1550-M |
||||
|
Operating wavelength |
nm |
1540 |
1545/1550 |
1565 |
||
|
Pulse energy |
μJ |
- |
3 |
20 |
||
|
Peak power1 |
kW |
- |
1 |
2 |
||
|
Pulse width |
ns |
0.5 |
3 |
250 |
||
|
Repetition rate |
kHz |
100 |
500- |
3000 |
||
|
Average power @>100kHz |
W |
- |
1.5 |
2 |
||
|
Beam quality |
M2 |
<1.1 |
||||
|
Output power stability (15mins) |
% |
- |
- |
±3 |
||
|
Output power stability (8hrs) |
% |
- |
- |
±1.5 |
||
|
Output isolation |
dB |
35 |
- |
- |
||
|
Operating voltage |
VDC |
5.5-12 |
||||
|
Operating temperature |
℃ |
-40 |
- |
+65 |
||
|
Storage temperature |
℃ |
-40 |
- |
+85 |
||
|
Power consumption |
W |
- |
14 |
- |
||
|
Polarization |
|
Random (Linear Polarization is optional) |
||||
|
Output fiber length |
m |
>0.3 |
||||
|
Optical connector |
|
FC/APC or Collimator |
||||
|
Trigger mode |
|
External TTL Trigger |
||||
|
Dimension |
mm |
70x70x25 |
||||
|
Weight |
g |
<170 |
||||
*Notes: Higher peak power is available.
Ordering Information:
· CoLID-Mini-1550-M-PW-RR-PP-FA
· PW: Pulse width in ns
· RR: Repetition rate in kHz
· PP: Peak power in kW, 01: 1kW
· FA: FC/APC connector, Collimator (Col) is optional.
· Example: CoLID-Mini-1550-M-03-500-01-FA
CoLID-Mini 1550nm Short Pulse Fiber Laser, 3ns pulse width, 500kHz repetition rate, 1kW peak power, FC/APC connector.
Features:
• High peak power: up to 2kW
• Small size : 70x70x25mm
• Low delay jitter and power consumption
• Good stability in the full temperature range
• Pulse energy: up to 20uJ
• Near-diffraction-limited beam quality
Applications:
• LiDAR
• Range Finding
• Telemetry
• 3D Scanning
• Other Scientific Research
