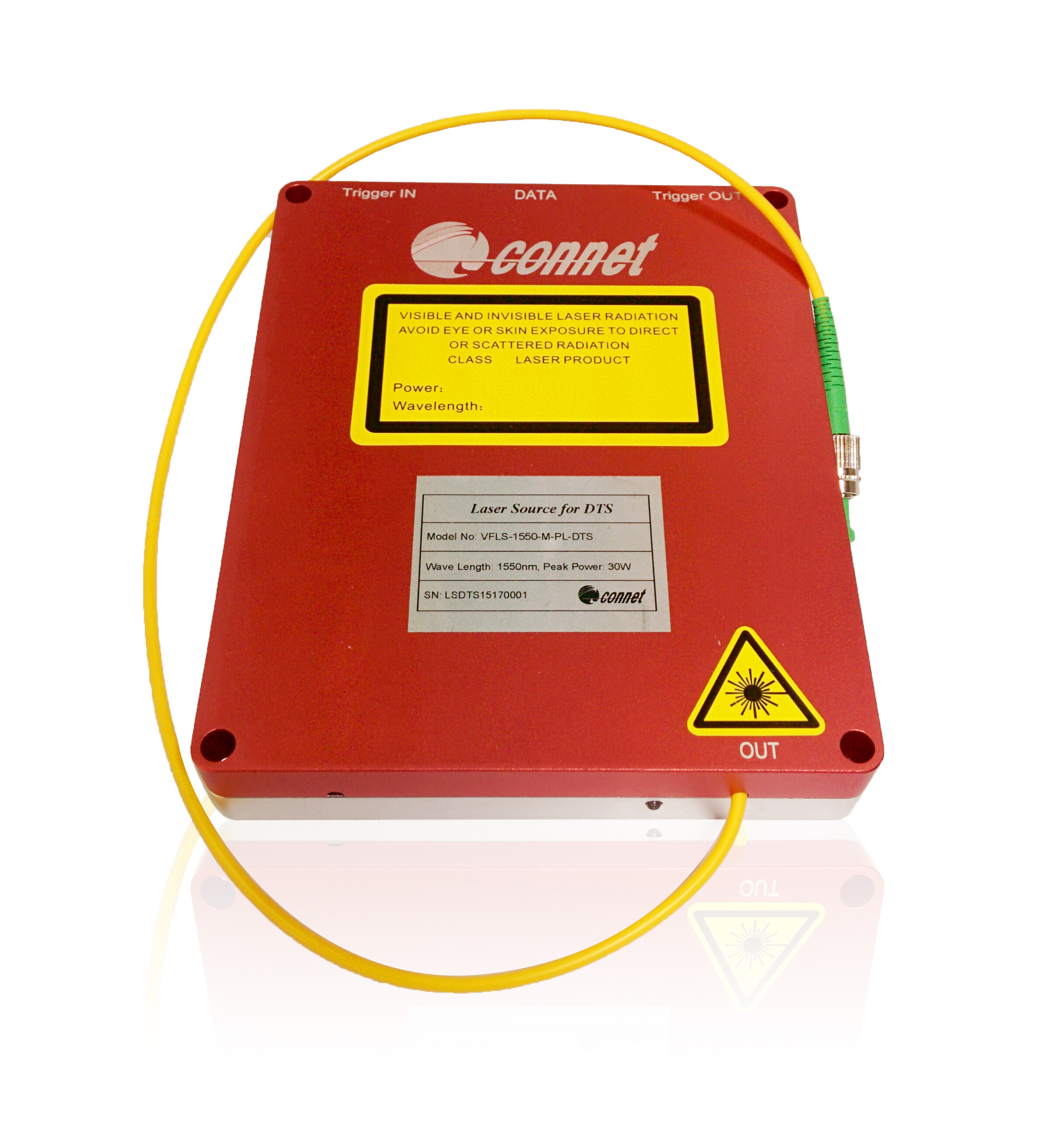

1550nm Pulsed Laser Source for DTS

The 1550nm pulsed laser source for DTS of Connet is a pulsed laser source with high efficiency based on the 1550nm wavelength which is safe to human eyes. The new ns-class pulse-drive circuit has stable pulse and tiny distortion. The optimized low noise Er-doped fiber amplifiers can realize the high peak power and the ns-class pulse output laser. This laser is very suitable for the areas of the distributed fiber temperature measurement system (DTS), the laser ranging and the optical fiber sensing, etc.

The 1550nm pulsed laser source for DTS of Connet employs the separate structure with relatively independent optical path and circuit. The modular package is adopted with the wide voltage supply and the industrial standard DB15 communication port design. The user can control and operate the source easily by computer. The pulse signal generator is integrated inside the source and the signal synchronization output interface is also equipped internally at the same time. The pulse output can be also achieved by the external TTL trigger signal. All modules go through the strict environmental tests to guarantee the long-time reliability and stability. It is very suitable for system integration.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



VFLS-1550-M-PL

Wavelength range

nm

1527

1550

1570

Spectral width (FWHM)

nm

-

0.1

1

Peak power1

W

20

30

100

Pulse width2

ns

1

10

250

Repetition rate3

kHz

1

10

1000

Beam quality

M2

-

1.1

1.2

Side-mode Suppression Ratio (SMSR)

dB

35

-

-

Output power stability (15mins)

dB

-

±0.003

±0.005

Output power stability (8hrs)

dB

-

±0.03

±0.05

Output isolation

dB

35

-

-

Return loss

dB

40

-

-

Operating temperature

-25

-

50

Storage temperature

-40

-

85

Output fiber type



SMF-28

Output fiber length

m

> 1

Optical connector



FC/APC

Trigger mode



Internal or External TTL Trigger

Control interface



RS232

Power supply

VDC

5-24

Dimension

mm

150(L)x125(W)x25(H)


Specifications:

· Higher output power can be customized.

· Pulse width is optional or tunable from 1 to 250ns.

· Repetition rate is optional or tunable from 1kHz to 1MHz.


Ordering Information:

· VFLS-1550-M-PL-<PW>

· M: Module

· PW: Peak power in W. Example: 30-30W, 50-50W

Features:

· High peak output: 30W (Typ.)

· Pulse width: 10ns (Typ.)

· Repetition rate tunable: 1kHz-1MHz

· Internal or external TTL modulation

· Reliable performance

Applications:

· DTS

· OTDR

· Ranging

· Processing

· Other scientific research
