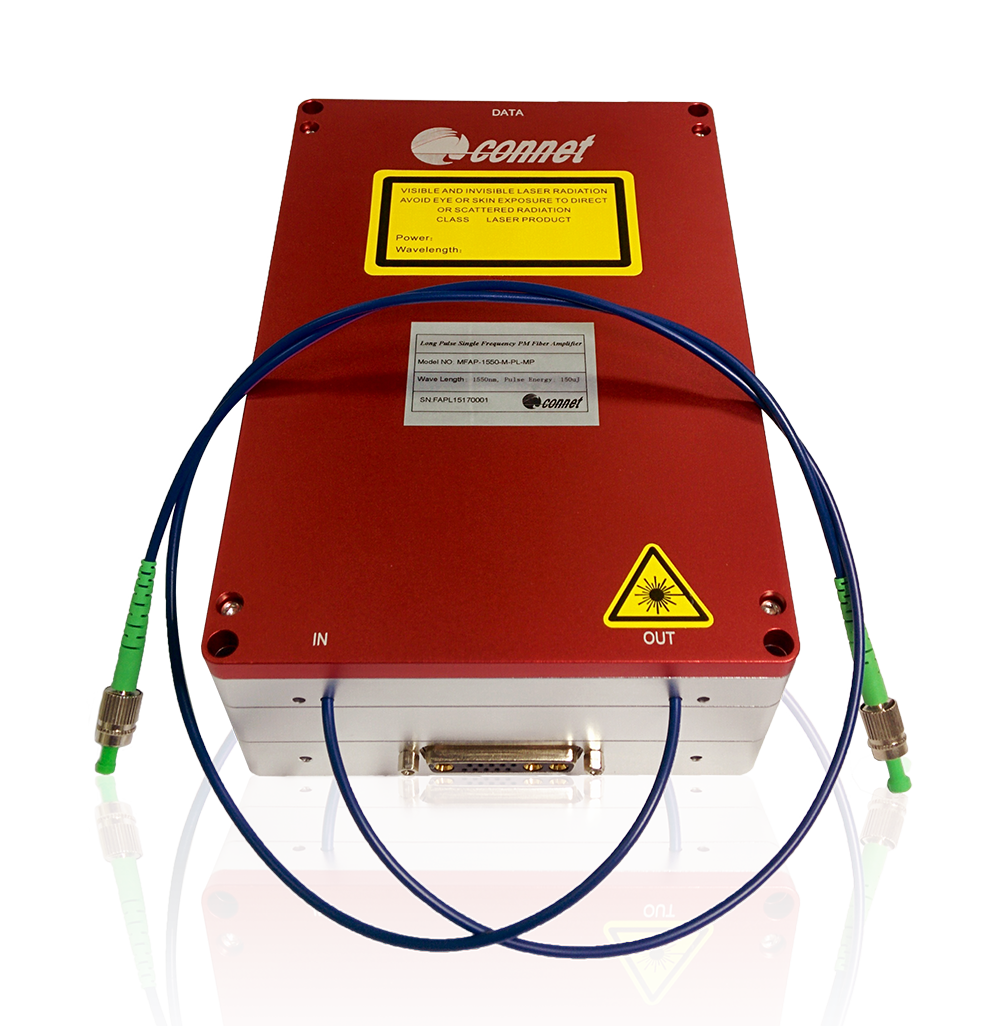

1.5um High Power CW Single Frequency Polarization Maintaining Fiber Amplifier

Connet 1.5um CW Single Frequency Polarization Maintaining Fiber Amplifier Module is suitable for single-frequency narrow-linewidth optical signal amplification with the linewidth being narrow to kHz. The optimized multi-stage fiber amplifier can suppress the nonlinear effects, for example, Brillouin scattering (SBS) to achieve the high power output and meanwhile maintain the spectral characteristics of the signal light.

The unique large mode area (LMA) fiber mode control technology and mode field adaptation technology of Connet enable the 1.5um CW single-frequency polarization-maintaining fiber amplifiers to achieve the near-diffraction-limited output beam quality. The amplifier is also available in the OEM modular package for harsh operating environments and is an ideal amplifier for long-range coherent communications, coherent Doppler LIDAR and other sensing systems, etc.

Specifications:

Option:

· High power 3-port Optical Circulator can be integrated.

Ordering Information:

· MFAP-1550-M-SF-xxx-HP-FA (-Col)

· xxx: Output power, e.g.: 005-5W, 010-10W

· FA: FC/APC connector, Col: Collimator

· Please contact us for further information like the optional integrated 3-port PLMA fiber optic circulator, the output beam diameter and the divergence angle of the output collimator.
