1.0um ASE Broadband Light Source
The VENUS series 1.0um high-stability ASE light sources of Connet use an optimized Yb-doped fiber all-fiber configuration, and cooperates with a carrier-grade 980nm single-mode pump laser to achieve high-performance output. The control system based on advanced microprocessors, combined with high-precision ATC and ACC (APC) control circuits, achieves a high and stable output of the laser, while ensuring fast and intuitive control of the light source.
Connet VENUS series high stability ASE light source has a highly stable output, and the long-term output power stability is even better than 1%. Connet unique high stability control circuit and thermal control design ensures the stable output is guaranteed.
The VENUS series benchtop 1.0um high-stability ASE light sources of Connet are highly integrated system with high-definition LCD which displays the key parameters such as output power, pump laser status etc. It's suitable for scientific research and manufacturing testing. In addition, Connet can also provide compact module package for system integration.
Specifications:
|
Parameter |
Unit |
Specification |
||
|
Min |
Typ. |
Max |
||
|
Part no. |
|
VASS-Yb-B：SM VASP-Yb-B：PM |
||
|
Output power1 |
mW |
10 |
- |
100 |
|
Operating wavelength |
nm |
1035 |
- |
1080 |
|
Spectral width (FWHM） |
nm |
- |
45 |
- |
|
Spectral flatness(Standard) |
dB |
- |
4 |
6 |
|
Spectral flatness(Gain Flatted) |
dB |
- |
2 |
3 |
|
Output isolation |
dB |
30 |
35 |
- |
|
Stability of output power(8h)2 |
% |
- |
±1.0 |
±2.0 |
|
Output Power Adjustment Mode |
|
Coarse / Fine |
||
|
Output fiber type (SM) |
|
SMF 6/125um NA=0.13 |
||
|
Output fiber type (PM) |
|
Panda 980 NA=0.13 |
||
|
Polarization extinction ratio(PER) |
dB |
> 20(PM output fiber) |
||
|
Length of output fiber |
m |
> 1 |
||
|
Output fiber connector |
|
FC/APC(other options available) |
||
|
Operating voltage |
VAC |
100-240 |
||
|
Power consumption3 |
W |
- |
- |
20 |
|
Operating temperature |
℃ |
0 |
- |
+50 |
|
Storage temperature |
℃ |
-40 |
- |
+85 |
|
Dimension |
mm |
270(L)×235(W)×105(H) |
||
Specifications:
• Output power is optional , typical output power: 10mW, 20mW, 50mW,100mW
• The output power stability is measured under 25℃, 30 minutes after warm-up.
• The max power consumption refers to the consumption under extreme temperature conditions.

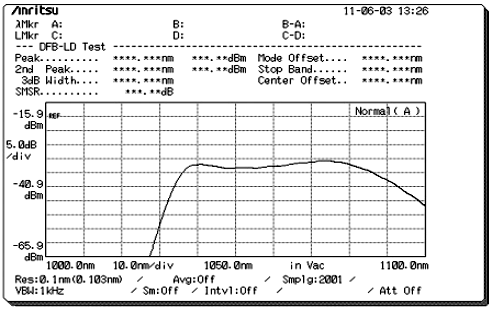

Spectrum:
Ordering information:
• VASS-Yb-P-<PW>-<FL>
• VASP-Yb-P-<PW>-<FL>
• VASS: SM fiber output; VASP: PMF output.
• P: Package, B-benchtop, M-module
• PW: Output power in mW.Example:30-30mW,50-50mW
• FL: Spectral flatness: 0-Standard, 1- Gain Flatted
Features:
· Single-mode output
· Wide spectrum: > 45nm
· High output power
· Low RIN
Applications:
· Test and measurement
· Optical fiber sensor system
· Optical coherence tomography
· Spectrum analysis
· Other lab applications
