C+L-Band ASE Broadband Light Source
The VENUS series C+L band ASE light source of Connet employs the optimized Er-doped fiber laser to realize output laser with wide spectrum, high output power and extremely high stability output power within the whole operating temperature range. The C+L-band ASE sources of Connet have the extremely high spectral flatness which is less than 3.5dB.
The VENUS series C+L band ASE light sources of Connet are the highly integrated systems. The benchtop source uses the high-definition LCD which can display the current and the voltage synchronously and the output power also can be continuously tunable. They are suitable for scientific research and manufacture testing. In addition, Connet also can provide the compact module package for system integration.
Specifications:
|
Parameter |
Unit |
Specification |
||||
|
Min |
Typ. |
Max |
||||
|
Part no. |
|
VASS-CL-B：SM VASP-CL-B：PM |
||||
|
Output Power1 |
mW |
10 |
- |
200 |
||
|
Operating Wavelength |
nm |
1528 |
- |
1602 |
||
|
Spectral Width (FWHM) |
nm |
- |
74 |
- |
||
|
Spectral Flatness(Standard) |
dB |
- |
6 |
7 |
||
|
Spectral Flatness( Flattened) |
dB |
- |
2.5 |
3.5 |
||
|
Output Isolation |
dB |
30 |
35 |
- |
||
|
Stability of Output Power (15min)2 |
% |
- |
±0.5 |
±1.0 |
||
|
Stability of Output Power (8h)2 |
% |
- |
±2.0 |
±5.0 |
||
|
Output Power Adjustment Range |
% |
0 |
- |
100 |
||
|
Output Power Adjustment Mode |
|
Coarse / Fine |
||||
|
Output Fiber Type (Single mode) |
|
SMF 9/125um NA=0.13 |
||||
|
Output Fiber Type (PM) |
|
PM1550 NA=0.13 |
||||
|
Polarization Extinction Ratio (PER) |
dB |
> 17（PM output fiber） |
||||
|
Output Fiber Length |
m |
> 1 |
||||
|
Output Fiber Connector |
|
FC/APC (other options available) |
||||
|
Operating Voltage |
VAC |
100-240 |
||||
|
Power Consumption3 |
W |
- |
- |
20 |
||
|
Operating Temperature |
℃ |
0 |
- |
+50 |
||
|
Storage Temperature |
℃ |
-40 |
- |
+85 |
||
|
Dimension |
mm |
340(L)×240(W)×100(H) |
||||
Specifications:
· Output power is optional, typical output power :10mW、20mW、50mW、100mW、200mW；
· The output power stability is measured under 25℃，after 30 minutes’ warm-up；
· The max power consumption is tested under the extreme temperature conditions.

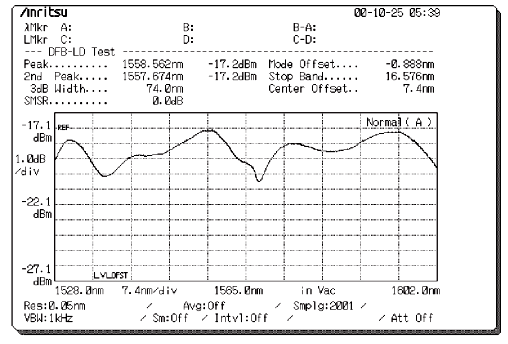

Spectrum:
Ordering information:
· VASS-CL-P-<PW><FL>:SM
· VASP-CL-P-<PW><FL>:PM
· P: Package ,B-benchtop, M-module
· PW: Output power in mW. Example: 10-10mW, 50-50mW
· FL: Spectral flatness, 0-Standard, 1- Flattened
Features:
· High output power: up to 200mW
· High stability and high reliability
· Wide bandwidth: C+L band
· Excellent flatness:<3.5dB
· Low ripple
Applications:
· Components test
. Optical fiber sensing system
. Spectrum analysis
· Optical fiber gyroscope
· Fiber communication
