C-band ASE Broadband Light Source

The VENUS series C-band ASE light source of Connet employs the optimized Er-doped fiber laser to realize the output laser with different spectral width, high output power and extremely high stability output power within the whole operating temperature range. The C-band ASE light sources of Connet have the extremely high spectral flatness. For the purpose of different applications, the Low DOP output can be provided according to the requirement of the customer.

The VENUS series C-band ASE light sources of Connet are the highly integrated systems. The benchtop source uses the high-definition LCD which can display the current and the voltage synchronously and the output power also can be continuously tunable. They are suitable for scientific research and manufacture testing. In addition, Connet also can provide the compact module package for system integration.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



VASS-C-B:SM        VASP-C-B:PM

Output power1

mW

10

-

200

Operating wavelength

nm

1528

-

1561

Spectral widthFWHM

nm

-

33

-

Spectral flatnessStandard

dB

-

-

7

Spectral flatness( Flattened)

dB

-

1

1.5

Output isolation

dB

30

35

-

Degree of Polarization( DOP  )2

%



2

5

Output power Stability (15mins)3

%

-

±0.5

±1.0

Output power Stability (8h)3

%

-

±1.0

±2.0

Output power tunable range

%

0

-

100

Output power tunable mode



Coarse / Fine

Output fiber typeSM



SMF 9/125um NA=0.13

Output fiber typePM



PM1550 NA=0.13

Polarization extinction ratioPER

dB

> 17PM output fiber

Output fiber length

m

> 1

Optical connector



FC/APC (other options available)

Operating voltage

VAC

100-240

Power consumption4

W

-

-

20

Operating temperature

0

-

+50

Storage temperature

-40

-

+85

Dimension

mm

340(L)×240(W)×100(H)


Specifications:

• Output power is optional, typical output power: 10mW、20mW、50mW、100mW、200mW;

• Low DOP is optional;

• The output power stability is measured under 25℃,after 30 minutes' warm-up;

• The max power consumption is tested under the extreme temperature conditions.

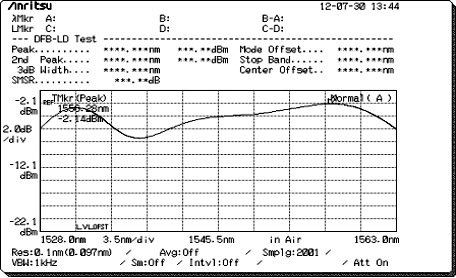

Spectrum:


Ordering information:

• VASS-C-P-<PW>-<FL>:SM

• VASP-C-P-<PW>-<FL>:PM

• P: Package, B-benchtop, M-module

• PW: Output power in mW.  Example: 50-50mW,200-200mW

• FL: Spectral flatness, 0-Standard, 1- Flattened

Features:

· Broadband spectrum

· High output power

· Good spectral stability

·  Low ripple and High flatness

· High reliability and durability

Applications:

· Components testing

· Optical fiber sensing system

· Optical coherence tomography

· Spectrum Analysis

· Optical fiber measurement equipment
